Lm Series Linear Guide Motion Slide Ball Bearing for CNC Parts Electronic Equipment

Product Description

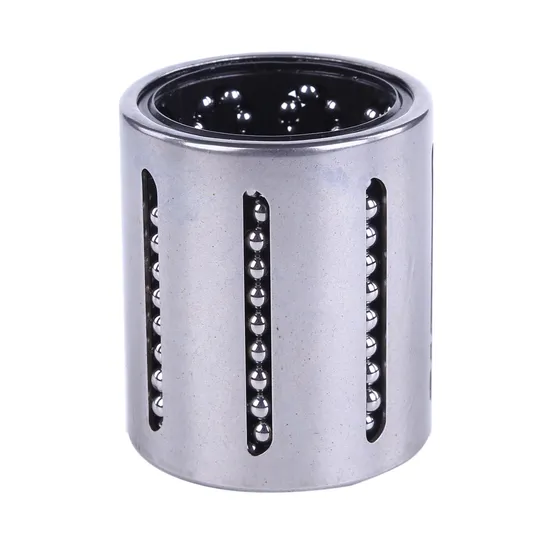

Specification Linear bearings are bearing elements for translation type motion. As in the case of rotary bearings, a distinction is drawn as to whether the forces occurring are transmitted by means of rolling or sliding elements. Each linear design has particular characteristics that make it especially suitable for particular bearing arrangements.
1. enable high precision linear motion on round shafts
2. sustain heavy loads with low noise and high stiffness
3. perform under almost any environmental conditions and load capacities to satisfy a wide range applications Product Parameters LM Series linear bearings

Part No.	Main Dimensions and Tolerance										Basic Load Rating C Co N N		Eccen-tricity	Weight (g)
Seal Type	Ball Circuit	dr(mm)	Tolerance (μm)	D(mm)	Tolerance (μm)	L (mm)	Tolerance (μm)	B (mm)	Tolerance (μm)	W (mm)
LM6UU	4	6	0 - 10	12	0 -13	35	0 -300	27	0 -400	1.1	323	530	15	16
LM8UU	4	8	0 - 10	15	0 -13	45	0 -300	35	0 -400	1.1	431	784	15	31
LM10UU	4	10	0 - 10	19	0 -16	55	0 -300	44	0 -400	1.3	588	1100	15	62
LM12UU	4	12	0 - 10	21	0 -16	57	0 -300	46	0 -400	1.3	813	1570	15	80
LM13UU	4	13	0 - 10	23	0 -16	61	0 -300	46	0 -400	1.3	813	1570	15	90
LM16UU	4	16	0 - 10	28	0 -16	70	0 -300	53	0 -400	1.6	1230	2350	15	145
LM20UU	5	20	0 -12	32	0 -19	80	0 -300	61	0 -400	1.6	1400	2740	20	180
LM25UU	6	25	0 -12	40	0 -19	112	0 -400	82	0 -500	1.85	1560	3140	20	440
LM30UU	6	30	0 -12	45	0 -19	123	0 -400	89	0 -500	1.85	2490	5490	20	480
LM35UU	6	35	0 -15	52	0 -22	135	0 -400	99	0 -500	2.1	2650	6270	25	795
LM40UU	6	40	0 -15	60	0 -22	151	0 -400	121	0 -500	2.1	3430	8040	25	1170
LM50UU	6	50	0 -15	80	0 -22	192	0 -400	148	0 -500	2.6	6080	15900	25	3100
LM60UU	6	60	0 -20	90	0 -25	209	0 -400	170	0 -500	3.15	7550	20000	30	3500

Related Bearings
Detailed Photos
Applications of Bearing
Packaging & Shipping

Packaging Detail	1.Industrial Exporting Package2. Individual plastic/Carton/pallet3. As the customers' requirements
Delivery Detail	30-45 days for normal order

Company Profile
CIXI Kent bearing company was established in 2003 and is one of the leading bearing manufacturers and exporters in China.
Kent specializes in the design and production of high precision, high speed and low noise groove ball bearings and pillow block bearings.
At present, the Corporation has more than 1,000 employees, a fixed assets of 2 billion yuan, and produces 250 million sets of bearings annually.
The Corporation's products are widely used in more than 50 countries and regions under 2 independent brands, namely "BUGAO" and "NBKT".
Why choose us?
▄ Cixi Kent bearing Co.,Ltd established in 2003, has been focused on high precision and low noise deep groove ball bearing research and manufacturing. Engaged in foreign trade for 16 years, we provide products for many industrial fields. We attach important to global production, Not only won wideapresd praise in the domestic market, but also gain the recognition of foreign market, such as European,Southeast Asian and Africa market.
▄ The company has more than 20 assembly lines, and through ISO9001:2000 quality management system certification, has a professional technical and service team, technical personnel proportion of more than 30%.
▄ To learn from the advanced level at home and abroad, to create their own high-quality bearings, is the eternal pursuit of Kent bearing company. Uphold the "True quality is more durable, let the bearing move more quieter"
business philosophy, we have received many customers good praise.
▄ We take customer satisfaction and product quality as the first priority for us, we supply reliable warranties and good after-sales services.
FAQ
1.Q: Are you a factory or trading company?
A: We are factory specialized in manufacturing and exporting bearings.
2.Q: Where is your factory located? How can I visit there?
A: Our factory located in Cixi county, Ningbo city . You can fly to Ningbo Lishe International Airport directly. All our customers, from home or abroad,are warmly welcome to visit our factory.
3.Q: Do you provide samples ? it is free charge?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4.Q: What is your main product?
A: We are making 10 series and total about 100 types of bearings.
5.Q: What is the MOQ for bearings?
A: Our MOQ is 1000 pieces.
Contact us

Contact person	Fiona Xu
Tel	0086-574-63087277, +86 19957451956
Address	Mayan Industry Zone, Henghe Town, Cixi, Ningbo, China

---
