500kg/Hr LLDPE LDPE HDPE Plastic Film Crushing Washing Drying Recycling Line with Squeezing Dryer Machine

Product Description

500kg/Hr LLDPE LDPE HDPE Plastic Film Crushing Washing Drying Recycling Line with Squeezing Machine
Product Description

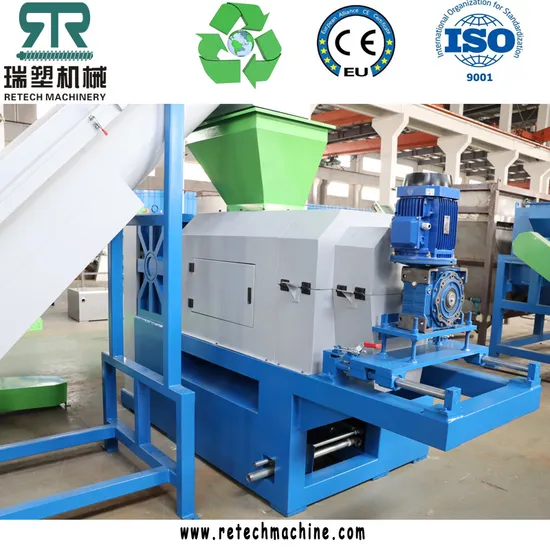

The design of our Plastic Film Squeezing Machine is specially for processing PP PE films, the mainly design is customized according to customer's different capacity requirements.
By efficient plastic film crushing unit, the film will be cutted into small flakes, then it will be convey to constantly washing and friction system. Usually we will make some hot washing units if the flakes is too dirty.
After fully washed and cleaned, the dryer machine with high RPM will make flakes dry. The final flakes moisture will be within 3%. It can be put to pelletizing directly by our pelletizing line.
With PLC controller system, it will running very automatically.
Detailed Photos
Product Parameters

Model	Man power	Electric power	Water needed
RSW500	2	120kw	3-4t/h
RSW1000	2	160kw	4-5t/h
RSW2000	3	230kw	5-6t/h
RSW3000	4	320kw	7-8t/h

Certifications
Packaging & Shipping
Our Advantages
Features
1) Trommel screen-to remove sand,metals in first.
2) The centrifugal Dryer(To dry the flakes),squeezing dryer to minimum the humidity.
3) The sink float washer tank with hot wash function.
4) The granulator/crusher machine with low noise.
5) The PLC controller system.
The whole plastic recycling production line with high automatic features and labor saving.
