Horizontal Aluminum Profile Automatic Powder Coating Line

Product Description

Horizontal Aluminum Profile Automatic Powder Coating Line

1.Description:
Powder coating line spacialized design for painting mental doors. free design, overhead conveyor system,speed adjustable. high output and automatic.
All the size and data can be designed by the requirements by the customer
Following data is one type line as a conference for customers
2.Process powder coating Production Procedure:Pretreatment→Work Piece Loading→Drying→Automatic + Manual
Powder Coating → Powder Curing (25minutes, 180~200ºC) → Unloading 3. Details pics

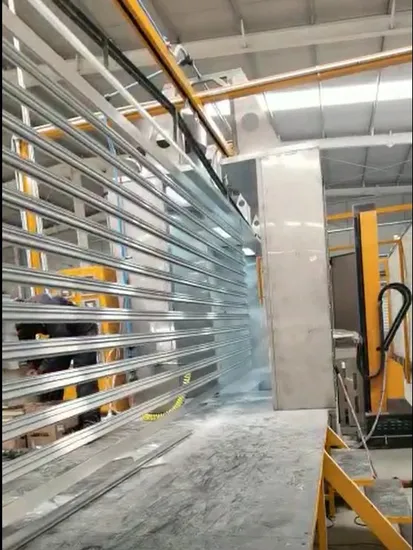

(1) Powder coating spray system:
Automatic spray reciprocator , Maunal spray equipment and Semi-auto (Auto-spraying with
manual repairing spraying) are for your choice;
(2)Curing oven :
Tunnel curing oven, bridge type curing oven, Electric power heating curing oven,Gas-heating
curing oven, Diesel heating curing oven ,High temperature ,lower temperature curing oven is available for fitting your sole factory.
(3)Conveying system: Various design according to different requirement by customer on the basis of customers' workpiece and output information.
4.Powder Coating line Components

1	Powder Feed centre	1 set
2	Powder Coating Curing Oven Tunnel	1 set
3	Curing Oven Heating - Diesel Burner with Heat Exchanger	1 set
4	Stainless Steel Powder Coating Booth	1 set
5	Recycle filter & cyclone	1 set
6	Auto Guns Powder Coating System ( 8 Guns)	1 set
7	CL-2000D Reciprocators	2 set
8	PLC Touch Screen Control	1 set

5.Design basis of Aluminum Profile powder coating line

1. Name of workpiece	Aluminum profile (Horizontal hanging method)
2. Max hanging size on each hanger	L6300mm×W200mm×H1500mm
3. Loading capacity on hanging hook	≤35kg
4. Suggested interval between 2 hangers	500mm
5. Conveying speed	2m/min (Adjustable control)
6. Output	0-12 hangers per hour
7. Spraying method	8 auto spray guns (match 2 reciprocators)&2 manual guns
8. Heating source	natural gas (Other choices are available: electric,oil or gas)
9.Required plant size	L50m×W24m×H7mm

The powder coating line can customize base on customers' detailed need.
FAQ 1.When did your company commence its business?
As a factory of powder coating machines, F&F is the brother company of HICOLO ,dated to 2005, on that year we are produce the spare parts for powder coating systems mainly,we expand our business range ,takes decades time.
2.Where is your Company located?
HANGZHOU CITY, Zhejiang province. China
IF YOU WANT TO VISIT US, YOU COULD TAKE PLANE TO Shanghai AIRPORT OR Hanghzou AIRPORT.
3.How can I pay you from abroad?
YOU COULD TRANSFER THE PAYMENT VIA T/T OR PAYPAL ,WESTERN UNION WE COULD PROVIDE YOU THE BANK DETAILS.
4.How do you ship the goods?
Generally, the bigh machine with more quantity we ship the goods by sea.
For some spare parts or only one machine, we suggest client to choose express like TNT, DHL, UPS, FEDEX. that is more faster.
If you have special requirements or need DOOR TO DOOR service, then please tell us before , we can calculate the shipping cost to you .
5.How do you provide after sales support?
We provide very active support by emails, telephone, online tools.
If necessary, we also could send technicals over there to help customer solve the problems.
6.How is the booth shipped and how long will it take to get once I order it?
There so many models we have in stock then we can delivery it as soon as we got your payment.
Others no in stock then we need some days to produce, machines need 3 days. and spray booth or curing oven we need 2 weeks.
if send by EXPRESS, it will take 5 days more or less you can get it. if send by sea, then depends on the country where you are .
anyway, we will be your feet and finsh the production soon to support you .
Any question,welcome to contact with us

---
