Aluminum Window Machine CNC Window and Door Double Head Cutting Saw

Product Description

CNC Double Head Cutting Saw WJM-CNC-500 /600 *4200
Cutting 45 and 90 degree
Product Description
1.1 Used for cutting aluminum alloy, suitable for different area, such as window door, curtain wall profiles.
1.2 Saw blade rotates smoothly due to high accurate main spindle
1.3 The feeding system adopts the imported linear guide pair,with high accuracy and stability
1.4 Two saw heads are adjustable and cut the profiles in 45°,90°freely.
1.5 Auto-opening shield made the operation safety.
1.6 This machine uses CNC Control, moving cutting length and change saw head are all automatic. Have printing function, can print code or profile information.

CNC double head cutting saw Parameter
Input power	4.4kw (600 saw blade use 6KW+0.75KW)
Power supply	380V/50Hz (Can make according your voltage)
Air pressure	0.6~0.8MPa
Motor rotary speed	2800r/min
Saw blade specification	φ500 φ550 φ600
Cutting angle	90°and 45°
Cutting length	260~6000mm
Cutting width*height	φ500	150*180mm (45 degree)
		150*240mm (90 degree)
	φ550	175*210mm (45 degree)
		170*260mm (90 degree)
	φ600	200*230mm (45 degree)
		200*290mm (90 degree)
Overall dimension	5800 * 1500 * 1700mm
Weight about	1600kg / 2100kg

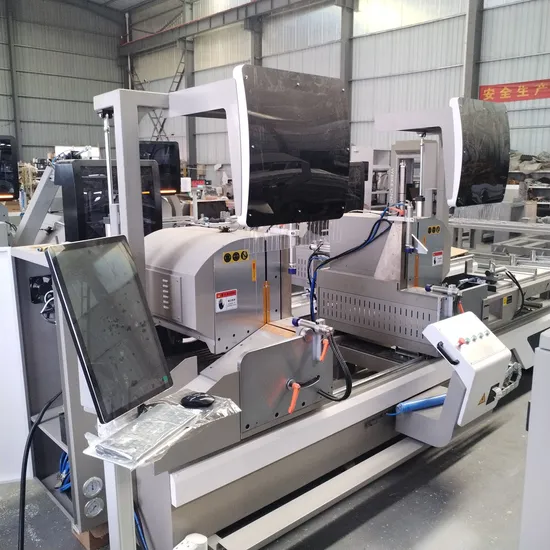

Detailed Photos
CNC Control, cutting length, cutting angle control are all automatic.
Transparent protective cover, dustproof.
Have printing function, so can print clients info and profile info.

Use planer to ensure the flatness of the mounting guild rails Guild is 40mm diameter, two guild distance is 700mm, More stable The machine inside design to slope, more easy for chips clean

Most supplier the angle fix is point to point, may easy broken, we upgrade to point to face, so enlarge use time.

Ultra-long processinglifespan carbide saw blades.
High-precision spindle and saw blade ensure cutting quality and can achieve cutting angles of 45°,90°
Cutting samples
Packaging & Shipping
Take the professional packaging of double-head saw cutting machine as an example:
1. Full film packaging of double-head saw cutting machine;
2. Anti-collision packaging edge;
3. Fumigation-free plywood boxes and pallets with iron strapping.
Company Profile
Shandong Weike CNC Machinery Co., Ltd. is a well-known manufacturer specializing in the research, development, production, and sales of aluminum doors, windows, and curtain wall equipment in China. It's the most large-scale and industrialized production enterprise in the industry.
We have three large production workshops, strong mechanical processing supporting capabilities, a high-quality scientific research team, and a high-tech production team. We have strong research and development strength, a perfect product system, and insist on independent innovation to continuously improve products in scientific and practical ways. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales, and service.

Certifications
After Sales Service
1. 2-year warranty. Provide a full range of technical support for life

2. From Monday to Sunday, 9 a.m. to 18 p.m.Experienced technician to guarantee lifetime online support (by WhatsApp, WeChat,Email,Facebook,Instagram) in English,Chinese,Hindi,Bengali ,Urdu. So there is no need to worry about technical support due to the time difference.

3. Support local after-sales service. Up to 2024, we have provided on-site services to more than 50 countries and regions: Canada,Mexico, The United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia etc.
Exhibition
FAQ
Q: How do I install and run the machine?
A:Our technician installed the machine before shipping. For some small part installation, we will send a detailed training video and user's manual along with the machine. 95% of customers can learn by themselves.

Q: What can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try to fix the machine by yourself or someone else. We will respond within 24 hours, as quickly as we can, to solve it for you.
Q: What customized services have you provided?
A:WEIKE CNC, we are the true manufacturer; we have our own factory, therefore we could supply full OEM and ODM services.
Q: Are WEIKE CNC machines user-friendly?
A:Yes, our machines are designed with user-friendliness in mind. They come with intuitive software interfaces that are easy to learn and operate. We also provide comprehensive training and technical support to ensure our customers can make the most out of their machines

Q:What after-sales support does WEIKE CNC provide?
A:We understand the importance of reliable after-sales support. We provide comprehensive technical support, including remote assistance, video tutorials, and access to our knowledgeable support team.

---
