Sddom Brand Special Customization Grout Batching Mixing Plant

US$20,358.00 1 Piece (MOQ)

Basic Info.

Model NO.
CSM40
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
60m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Power
Electricity
Total Power
44kw
Mixer
Mixing Tank
Agitator
Agitator Tank
Grout Discharge
Grout Pump
Cement Feed
Screw Conveyor
Max Pump Height
30m
Max Pump Horizontal Distance
150m
Dimension
6058*2438*2591mm
Weight
6800kg
Colour
Yellow, White, Blue, or Others
Control System
Automatic
Air Conditioner
Provided
Cement Silo
Horizontal Container Cement Silo
Customization
Accepted
Transport Package
Standard Packing
Specification
customized
Trademark
SDDOM
Origin
China
HS Code
8474310000
Production Capacity
100sets/Month

Product Description

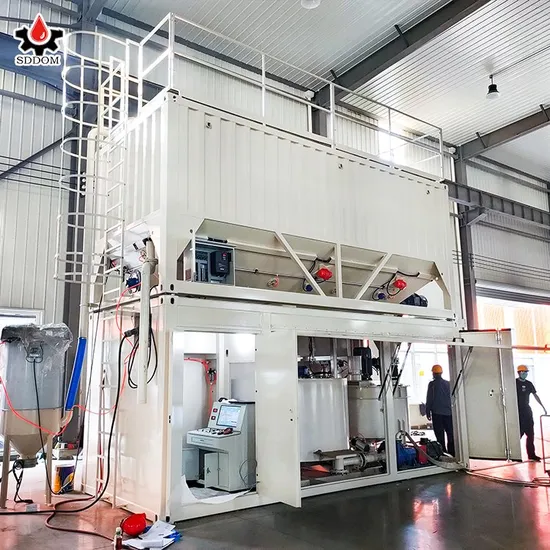

Brief introduction Grout mixing plant is a combination of mixer, agaitator and pump. It comes with an electronic load cell weighing system for cement, water and other components. The electronic control panel allows the selection of up to 10 components and 20 mixing formulas for optimum grout quality at any possible grouting or jet grouting project.
Features Grout Mixing Plant is special designed for cement and water mixed project. Its advantage is continuous mixing.
Full auto control system with SIEMENS PLC, main electric parts are SIEMENTS/Schneide brand. Container design can be shipped as container to save shipping fees. Container cement silo can be on top of container to supply cement.
Application in working site
