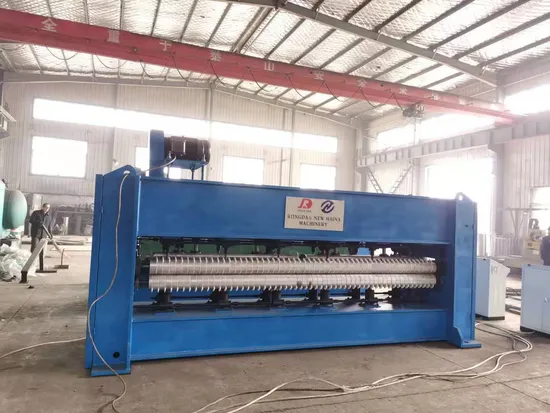

Polyester Waste Fiber Fabric Non Woven Loom Needle Punching Machine for Making Hard Felt

Product Description

Needle punching machine for nonwoven felt / blanket production line
1--Suitable fiber: chemical fiber, such as PET, PP specification: 1.5 ~ 6 d length of 31 ~ 51 mm polyester staple fiber and ES low melting point fiber, glass fiber, aramid fiber, etc.
2-- Product specifications: 50 ~ 1000 g / m2 (1 layer)
3-- Production capacity: carding machine output by 220 kg/h (6 d common assessment of chemical fiber as raw materials)
Usage and Features
Needle punching machine can convent the fleeciness textile fiber into Acupuncture cotton,high-density and high-spring such as Thermal insulation blanket,Greenhouses quilt raw materials,Shoes materials,Mattresses,Sofa cushion,Car mats,Chemical products and Non-woven fabrics for engineering etc,through Carding process,Spreading process,Acupuncture process,Strengthening process.
Product Feature:
1.Adopt CNC gantry milling machine with good stability, high precision and high finish
2.Automatic oil injection system,good for machine lubrication and maintenance.
3. Cagnesium alloy/PU combined needle board locked firmly by lock-bolt or air tube; multi random computer needling methods for needle board.
4.Chrome plated delivery rollers with carved or patterned surface.

NO	ITEM	DESCRIPTION
1	Model	GMZ-380M
2	Dimension of M/C	L4970W1600H2425(mm)
3	Weight	9050kgs/9350kgs
4	Total power	22kw
5	Main motor	15KW; 3 phase AC power 50Hz/
6	Needle density	Depend on the customer's requirements
7	The average output	360kg/hour(Working at width 2500mm&300g/m2 under running normal)
8	Protection	Main motor overload protection
9	The control mode	Constant power & Inverter control
10	Working width	3800mm
11	Needle plate	High-strength aluminum alloy
12	Bearing	KOYO/Or according to the customer's requirements
13	Type of holes	Diameter1.83mm/An inverted cone
18	Trip of needle	60 mm /40mm/40mm
19	Transfer roller	Diameter:168mm/ Chromium plating process/high quality 50# steel
20	Needle plate	High strength alloys and shock shape /totally 18 mm thickness
21	The main shaft & other work shaft	Diameter: 80mm/ Dynamic balance and strength strengthening heat treatment/high quality steel
22	Print Color	Following customer's requirements
23	The control cabinet and panel	Digital display instrument, and equipped with knob regulator, professional electric schematic diagram
24	Note	Direction:up first then down/The round-trip distance of the needle can be adaptive adjustment according to the thickness of the raw materials.
