C5231 Conventional Vertical Lathe Machine Double Column Vertical Lathe Vtl

US$116,000.00
1-4 Set
US$115,000.00
5+ Set

Basic Info.

Model NO.
C5231
Type
Vertical Lathe
Processing Accessory
Other
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Cutting Diameter
3200mm
Max. Cutting Height
1600/2000/2500mm
Worktable Diameter
2830mm
Max. Loading Weight
20t
Worktable Max. Torque
63kn.M
Worktable Speed Range
2-63rpm
Worktable Step
16
Right Tool Post Cutting Force
35kn
Left Tool Post Cutting Force
28kn
Tool Post Horizontal Travel
1700mm
Tool Post Vertical Travel
1000/1250mm
Crossbeam Travel
1250/1650/2150mm
Main Motor
AC55kw
Machine Weight
39/42t
Overall Dimension(L*W*H)
6000*4860*5000mm
Transport Package
Wooden Cases
Specification
6000*4860*5000mm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month

Product Description

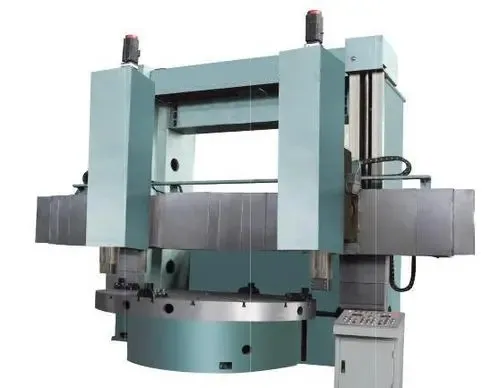

Product Picture
Specification Parameter
Specification Unit C5225 C5231 C5235 C5240 C5250 C5263
Max. Cutting Diameter mm 2500 3150 3500 4000 5000 6300
Max. Cutting Height mm 1600/2000/2500 1600/2000/2500 1600/2000 1600/2000/2500 2000/2500/3150 3150/4000
Worktable Diameter mm 2250 2830 2830 2830/3200/3600 4000/4500 4500/5000/5700
Max. Loading Weight t 10/16/20 10/16/20 20 20/32/50 32/50 50/100
Worktable Max. Torque kn. m 63 63 63 63 70 100
Worktable Speed Range rpm 2-63 2-63 2-63 0.5-40 0.5-40 0.5-38
Worktable Step steps 16 16 16 16 16 16
Right Tool Post Cutting Force kn 35 35 35 35 35/50 50/80
Left Tool Post Cutting Force kn 28 28 28 28 28/40 40/70
Tool Post Horizontal Travel mm 1400 1700 1900 2150 2765 3450
Tool Post Vertical Travel mm 1000/1250/1400 1000/1250 1000/1250 1000/1400 1250/1400/1600 1600/2000
Crossbeam Travel mm 1250/1650/2150 1250/1650/2150 1250/1650 1250/1650/2150 1500/2000/2650 2650/3500
Main Motor kw AC55 AC55 AC55 AC55 AC55/75 AC75/90/110
Machine Weight t 32/34/36 39/42 40/43 43/45/48 60/65/70 118/127/178
Overall Dimension(L*W*H) mm 5180*4700*4800 6000*4860*5000 6400*5050*5200 6900*5200*5700 9200*5800*5800 11500*7500*9300
