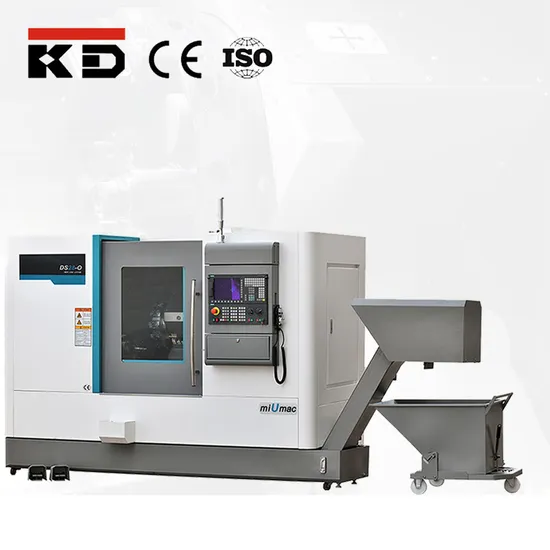

CNC Machine Tools Lathe Manufacturer for 66 Years

US$33,784.00-37,811.00 1 SET (MOQ)

Basic Info.

Model NO.
DS28-O
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Swing Over Bed
520mm
Spindle Bore
65mm
Spindle Nose
A2-6
Tool Turret
12-Way Hydraulic Turret
Main Motor
11/15kw
Spindle Speed
4000/5000rpm
Rapid Feed
30m/Min
Chuck Size
8" Hydraulic Chuck
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/Year

Product Description

Milling CNC Machine Tools Lathes Manufacturer for 66 Years Product Features
Product Specifications
MODELS
DS28-O/500
DS28-O /1000
DS28-O /1500
CAPACITY

Max. swing over bed
Ф520mm
Max. cutting diameter for disc parts
Ф420mm
Ф420mm
Ф500mm
Max. cutting diameter for axle parts
Ф300mm
Max. cutting length
500mm
1000mm
1500mm
TRAVEL

X travel
255mm
270mm
270mm
Z travel
600mm
1050mm
1550mm
FEED

Rapid feed speed of X/Z
30/24m/min
Linear guide ways width of X/Z
35/ 45mm
Ball screw of X
Ø32×10 mm
Ø32×10 mm
Ø32×10 mm
Ball screw of Z
Ø40×10 mm
Ø40×10 mm
Ø50×10 mm
SPINDLE

Max. speed of spindle
4000rpm
2500rpm
2500rpm
Spindle nose
A2-6
A2-8
A2-8
Diameter of spindle bore
Ф65mm
Ф80mm
Ф80mm
Hydraulic chuck
8″
10"
10"
Spindle motor power
11/15kw
15/18.5kw
15/18.5kw
TOOL POST

Tool number
12-T hydraulic
Outside diameter of cutting tool shank
25×25mm
Inner dia. of cutting tool shank
Ф40mm
TAILSTOCK

Tailstock sleeve dia.
Ф80mm
Tailstock sleeve travel
120mm
Taper hole of tailstock quill
M.T.No.4
M.T.No.5
M.T.No.5
OTHERS

Positioning accuracy of X/Z
≤0.010/0.012mm
Repeated positioning accuracy
≤0.003/0.005mm
Power of coolant pump
180W
Capacity of lubrication pump
2L
Bed structure
45° slant bed integrated with stand
Overall dimensions(L×W×H)
2880×1850×2000mm
4800×1850×2000mm
5300×1850×2000mm
Net weight
4300kg
5500kg
6500kg
