Basic Info.
Application
Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Pharmaceutical
Cooling Method
Water Cooling
Heating Method
Steam Heating
Insulation Material
Mineral Wool
Main Material
Stainless Steel
Mixing Capacity
1000L & Above
Stirring Type
Paddle or Anchor
Name
3000 Gallon Stainless Steel Chemical Reactor Price
Name 2
Stainless Steel Mixing Tank
Name 4
Liquid Mixing Tank
Name 5
Liquid Mixing Machine
Operating Type
Continuous Operating
Transport Package
Wrapped with Cloth or Woodcase Package
Specification
customerised
Production Capacity
300 Sets/Month
Product Description

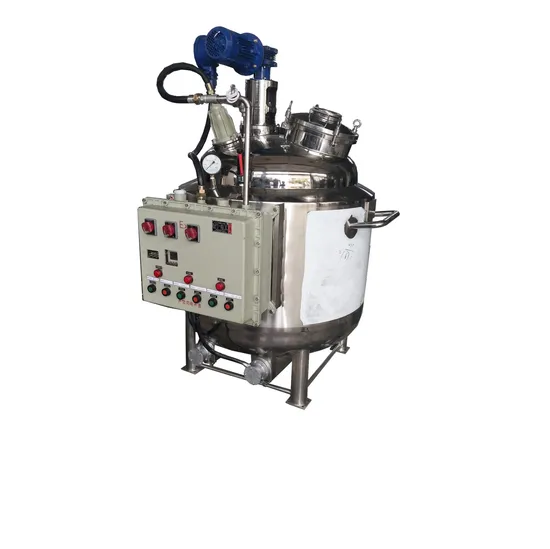

3000 Gallon Stainless Steel chemical reactor prices Summary:
This equipment is used in the production process of hydrolysis, neutralization, crystallization, distillation, evaporation and other processes in medicine, chemical, food and light industries. It is acid resistance, high temperature resistance, wear resistance, and corrosion resistance. It can also be produced as per users' requirements.
Features:
Material: SUS304 or S.S.316L
Mixing type: anchor type, frame type or paddle type
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing equipment: Mechanical sealing
Heating or Cooling: jacket, half pipe or coil pipe
Heating way: steam heating, electrical heating or heat conduct oil.
Volume: can be made as per customer requirements
Measure: can be made as per customer requirements
Technical Parameter:
| FYG100
| FYG200
| FYG500
| FYG1000
| FYG1500
|
Volume L
| 100
| 200
| 500
| 1000
| 1500
|
Diameter mm
| 500
| 600
| 800
| 1000
| 1200
|
Tank Pressure MPa
| 0.25-0.5
|
Jacket Pressure MPa
| 0.30
|
Motor Power kw
| 1.1
| 1.5
| 2.2
| 4.0
| 4.0
|
Agitation Speed r/min
| 85
|
Tank Type
| First Grade Pressure Tank
|
| FYG2000
| FYG2500
| FYG3000
| FYG4000
| FYG5000
|
Volume L
| 2000
| 2500
| 3000
| 4000
| 5000
|
Diameter mm
| 1200
| 1400
| 1400
| 1500
| 1600
|
Tank Pressure MPa
| 0.25-0.5
|
Jacket Pressure MPa
| 0.30
|
Motor Power kw
| 4.0
| 5.5
| 5.5
| 5.5
| 7.5
|
Agitation Speed r/min
| 85
|
Tank Type
| First Grade Pressure Tank
|
>>
