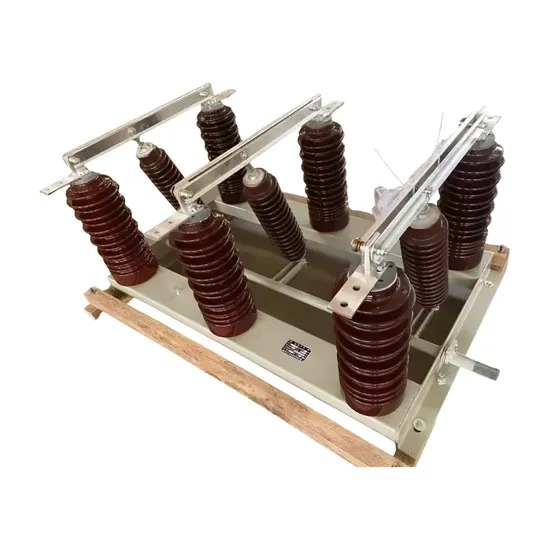

Series 3-Phase Outdoor High/Medium Voltage Load Break AC Single Disconnect Disconnector Pole Isolation Switch

Product Description

Product Description
Product Description
Specifications
AC HV Disconnect Switch
1.rated voltage :12kV
2.three-phase AC 50/60Hz
AC HV Disconnect Switch
•summary:
1.GN30-12(D) disconnec t switch is an indoor electric apparatus of rated voltage 12kV, three-phase AC50/60Hz
2.It is used to make break and transfer current for HV ele ctric apparatus under situations with voltage and no-load
3.The switch appl ies rotary moving contact which is mounted on the switchgear easi ly.
4.It adopts wal l through instal lation as well. In electrical engineering, a disconnector, disconnect switch or isolator switch is used to ensure that an electrical circuit is completely de-energized for service or maintenance. They are only used for breaking the circuit and are often found in electrical distribution and substation, where machinery must have its source of driving power removed for adjustment or repair. Disconnectors can be manual or motor operated and may be paired with an earthing switch to ground the portion that has been isolated from the system for ensuring the safety of equipment and the personnel working on it.High-voltage isolation switches are used in electrical substations to allow isolation of apparatus such as circuit breakers, transformers, and transmission lines, for maintenance. The disconnector is usually not intended for normal control of the circuit, but only for safety isolation. Unlike load switches and circuit breakers, disconnectors lack a mechanism for suppression of electric arcs, which occurs when conductors carrying high currents are electrically interrupted. Thus, they are off-load devices, with very low breaking capacity, intended to be opened only after the current has been interrupted by some other control device. Product Parameters

Technical parameter
Model	Rated voltage (kV)	Rated current	Rated short-time withstand current	Rated peak withstand current
		(A)	(kA/4s)	(kA)
GN19-12/400-12.5	12	400	12.5	31.5
GN19-12/630-20	12	630	20	50
GN19-12/1000-31.5	12	1000	31.5	80
GN19-12/1250-31.5	12	1250	31.5	80
GN19-12C/400-12.5	12	400	12.5	31.5
GN19-12C/630-20	12	630	20	50
GN19-12C/1000-31.5	12	1000	31.5	80
GN19-12C/1250-31.5	12	1250	31.5	80

PARAMETERS
No.	ITEM	UNIT	VALUE
1	Rated voltage	KV	12/40.5
2	Rated frequency	HZ	50
3	Rated current	A	630/1250
4	Rated breaking current for rated active load	A	630/1250
5	Rated closing current	A	630/1250
6	5% rated breaking current for rated active load	A	62.5
7	Rated cable charging breaking current	A	25
8	1 min Power frequency withstand voltage: vacuum interrupter, same relative to ground, isolated interrupter	KV	42/68/95/110
9	Lightning impulse withstand voltage: phase-to-phase relative to ground/isolated interrupter	KV	75/125/185/215
10	Rated short-time withstand current (thermal stability)	KA	25
11	Rated short-circuit duration	5	4
12	Rated peak withstand current (dynamic stability)	KA	63
13	Rated short-circuit closing current	KA	63
14	Mechanical life		10000
15	Allowable wear thickness of vacuum arc-extinguishing chamber contact	mm	0.6
16	Manual operating torque	Nm	≤300

Company Profile
Zhejiang ChaoTai Complete Equipment Co., Ltd. is a high-tech enterprise focused on the field of electrical integration. We have a professional R&D, production, and service team with over 15 years of industry experience.
Our main products include high-voltage solid-state soft starters, capacitor cabinets, high and low voltage switchgear, gas-insulated switchgear, and substations. Currently, our products are widely used in various fields such as energy and chemical industries, metal smelting, electric power grids, industrial manufacturing, universities and research institutions, medical and pharmaceutical sectors, municipal commerce, water conservancy and hydropower, road traffic, and commercial and residential areas.
We adhere to technological innovation and the development philosophy of "smart manufacturing," vigorously introducing high-level technical talents to comprehensively enhance the company's core competitiveness, while providing the most valuable services to our customers and striving to build the best brand in the industry. Since its establishment, the company has continuously made progress, evolving from nothing to something, and from something to excellence. We insist on innovation and follow a modern business path of survival through quality, market-oriented, development through reputation, and efficiency through management." We are committed to "technology as the guide, standardized management, excellent quality, and customer satisfaction" in our quality and technical talent management, enhancing the company's market competitiveness, and striving to serve the transmission and distribution fields of China's electric power and grid with faster, stronger, and higher goals. Integrity is fundamental, quality is paramount, service is supreme, and customer satisfaction is our eternal tenet. Pursuing excellence, continuous innovation, and puilding a trustworthy brand are the company's unwavering development goals. Your recognition is our driving force. We thank all our new and old customers for their support and affection, and Senhang Technology looks forward to working hand in hand with you to create a better future.
Our Advantages
After Sales Service
Packaging & Shipping
FAQ
Q1. Are you a factory or trading company?
A.We are a factory.
Q2. Where is your factory located? How can I visit there?
A. Our factory is located in Wenzhou City, Zhejiang Province, China. You can fly to Longwan airport directly. All our clients,from home or abroad, are warmly welcome to visit us!
Q3. What's the payment term?
A. We accept TT. 30% deposit and 70% before shipment, Western Union, L/C At Sight is ok! We'll l show you the photos of the products and packages before you pay the balance.
Q4. Tell me the standard of package? What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons, If vou have leaallyl registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q5. Would you accept to use our logo?
A. If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of aoods is small we usually use TNT.DHL.FEDEX.EMS and some express voull offered. If the number of the goods is big usually we use the FWD you offered or we provided. Either by sea or by air is OK.
Q7. What is your Production lead time /delivery time?
A: Generally, it will take 25 to 30 days after receivina vour advance payment.
The specificl delivery time depends on the items and the quantity of your order. Silicone rubber's reqular product is 1,000/ week, Porcelain's need 2-3 weeks about 1000 pcs.
Q8. How do you make our business long-term and good relationship?
A:l. We keep aood auality and competitive price to ensure our customers benefit:
A: 2. We respect every customer as our friend and we sincerely do business and make friendsl with them, no matter where they come from.
A: 3.Most goods we have the type report according the IEC STANDARD
Q9. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q10. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q11. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q12.What certificates do you have?
A:ISO9001,OHSAS18001,ISO14001 certificate and Type test report of product.

---
