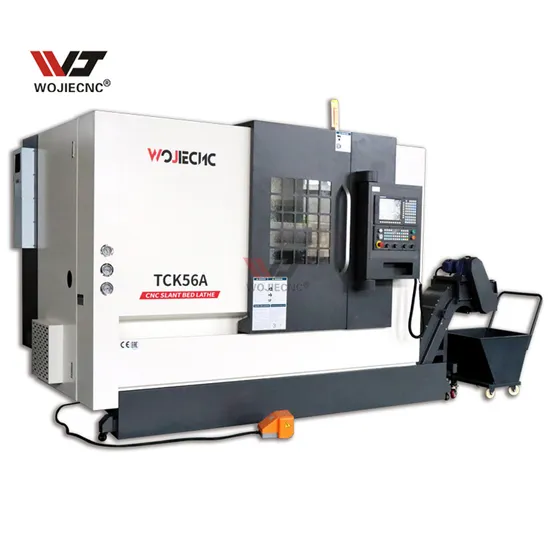

Heavy Duty CNC Turning Center Automatic Lathe Machine 4 Axis Tck56A Tornos CNC Slant Bed Lathe Machine with Siemens Fanuk GSK System for Metal

Product Description

Product Description
This series of machine tools adopts an integral bed with a 30° bevel angle, and the bed material is HT300. It is cast using resin sand technology and has a reasonable internal rib layout. The guide rail adopts imported linear roller guide rail, which has improved feeding accuracy, small friction resistance, good rigidity, high resistance to vibration and deformation, allowing users to obtain higher processing accuracy, increase the speed of rapid movement, and obtain higher production efficiency.
Product Parameters

CNC Lathe Machine TCK56A
SPECIFICATIONS	Units	TCK56A-500/1000
Max Swing over bed	mm	560
Max cutting length	mm	500/750/1000/1500
Standard cutting diameter	mm	330
Max cutting diameter	mm	470
Max swing over cross slide	mm	330
Spindle bore	mm	65/82
Bar capacity	mm	50/70
Spindle nose type	-	A2-6/A2-8
Spindle speed range	rpm	50-3500
X axis travel	mm	260
Z axis travel	mm	610/830/1050/1570
Y axis (Optional)	mm	±50
X axis rapid traverse	mm/min	20000
Z axis rapid traverse	mm/min	20000
Main spindle motor	kw	11kw
Tailstock quill diameter	mm	74
Tailstock quill taper	-	MT5
Guide rail type	-	Slant bed linear rail
Machine weight	kg	4000/4350/3570/5400
Overall dimension	mm	3300/3600/3900/4500*2130*2320

Detailed Photos

Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin	Hydraulic chuck Standard configuration:8" Optional configuration: 10" / 12" hydraulic chuck
Turret For CNC Lathe Machine, standard is hydraulic turret For CNC Turning Center,standard is power Turret	Tailstock Standard configuration:Hydraulic tailstock Optional configuration: Programmable tailstock
3-axis linear guide Using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.	Lead screw 3-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
	Pneumatic system With electronic display, better stability, when changing tools on the equipment and spindle, the air pressure will be very stable and there will be no tool jamming
Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.	Electrical part Standard configuration: DELIX

Optional Accessories

Auto chip conveyor and chip bucket	Renishaw tool arm	Renishaw workpiece measure system OLP40
SERVO automatic feeder	details catcher	Oil-water separation (Oil skimmer)
Programmable tailstock	Y Axis	Oil Mist Collection

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
