| Negotiable | 10 Sets (MOQ) |
SPECIFICATION | |||

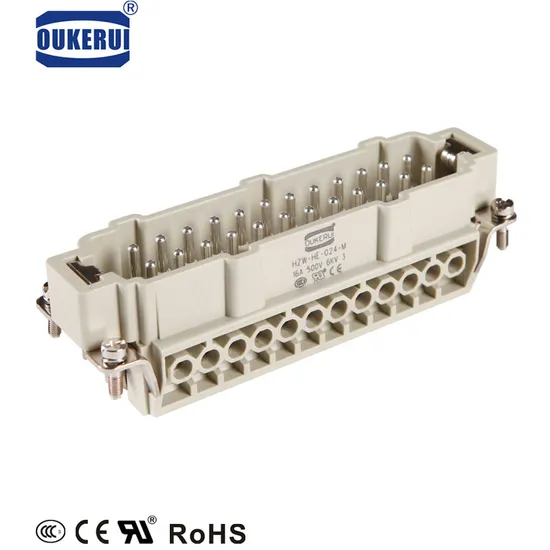

| Model No. | HZW-HE-024M | Gender type | Male |
| Pins | 024+PE | Contacts' surface processing technical | Silver or Gold Plated |
| Terminal type | Crimp Terminal | Mounting type | Bulkhead/Surface/ cable to cable |
| Housings material | Dia casting aluminum alloy | Insert Block | Top grade PC |
| Working Voltage | 500V | Working Current | 16A |
| Rated Impulse Voltage | 6KV | Temperature Bearing Range | -40ºC~+125ºC |
| International protection(IP) grade | IP65 | Pollution Degree | 3 |
| Flammability | V0 | Working Voltage Acc to UL/CSA | 250V |
| Mechanical Life Span | Min 500 times | Trademark | Oukerui |
| Warranty | 1 Year | Transport packing | Carton |
| Origin | China | HS code | 8530900000 |
SPECIFICATION OF CONTACT | |||
| Material | Copper Alloy | Surface Treatment | Silver/Gold Plated |
| Terminal | Screw/Crimp Terminal | Wire Gauge | 0.10-2.5mm2(AWG26-14) |
| Screw terminal tightening | 0.5Nm | Stripping length | 7-9mm |
