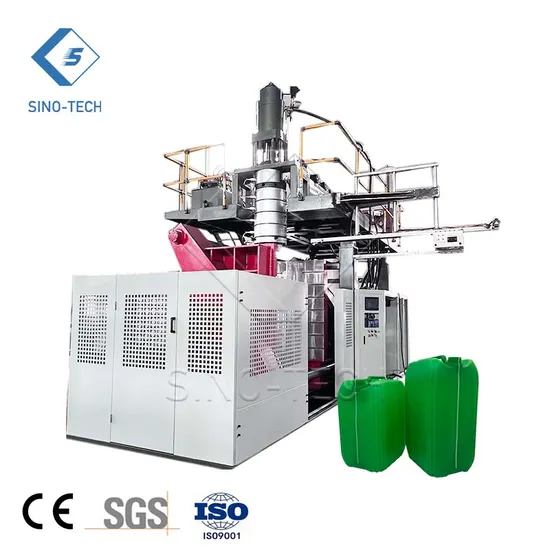

Automatic HDPE Accumulator Extrusion Blow Molding Machine

Product Description

Product Description
Advantages:
1. The temperature controlled by seimens PLC, the extruder stops automatically if the temperature is down because of heater or thermocouples damaged.
2. There is die head pressure testing in the diehead. The PLC shots down the extruders if the pressure inside the die head is too high.
3. The extruders have covers for keeping the temperature, so can make the heating time short
4. The temperature are controled by seimens brand.
5. The extrusion motor is seimens brand.
6. The inverter is seimens brand.
7. More protection in control system.
Detailed Photos
Product Parameters

Technical Specification
Specifications		STD-80 series	STD-90 series
Material		PP PE ABS	PP PE ABS
Max. Container capacity	L	30	60
Output (dry cycle)	Pc/hr	360	360
Machine diameter(L*W*H)	M	4.7*2.6*4	5.7*2.6*4
Total weight	T	12	13
Clamping system
Clamping force	KN	200	300
Platen opening stroke	mm	350-850	450-1050
Platen size(W*H)	mm	750*860	960*980
Max.mold size(W*H)	mm	520*1000	700*1200
Mold thickness	mm	360-420	460-600
Power
Max. drive	KW	67	74
Total power	KW	82	89
Fan power for screw	KW	0.5	0.5
Air pressure	Mpa	1	1
Air consumption	m³/min	0.8	0.8
Average energy consumption	KW	38	40
Extruder system
Screw diameter	mm	80	90
Screw L/D radio	L/D	24	24
Melting capacity	Kg/hr	120	130
Number of heating zone	Zone	4	4
Extruder heating power	KW	21.4	21.4
Extruder driving power	KW	30	37
Accumulator head
Number of heating zone	Zone	4	4
Power of die heating	KW	21.3	21.3
Max.die-pin diameter	mm	250	350
Accumulator capacity	L	5	6.6

Application
Company Profile
FAQ
Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time

---
