Tank Welding Machine with Straight and Flexible Rail/Tank Seam Welder/Simple and Portable Tank Welding Tractor/Tank Construction Machinery/Tank Welding Carriage

Product Description

Reference parameter

Items	Parameter		Note
	Straight rail type	Soft rail type
External power source	AC 220V 50/60 Hz		Three-hole
Working power source	AC 20V		Use of each driver
Dimensions	245*520*280cm	245*520*290cm	Length*width*height
Weight	8.6kg	10.4kg	Main engine
Track type	Linear motion guide	Self-aligning flexible slide rails
Drive mode	Gear drive	Sprocket drive
Welding speed	0~1650mm/min		Fastest
The thinnest adsorption plate thickness	3mm		Magnetically attractive metal
Welding gun adjustment range	65mm		Inching for up and down
	80mm		Inching for left and right
	+ 60°		Swinging angle
	+ 25°		Marching Angle
	Stop left, stop right		Swinging form
Operating function	0-100mm/min		Swinging speed
	0-2.5s		Left and right residence time
	+14mm		Swinging width
	+5mm		Center for compensation

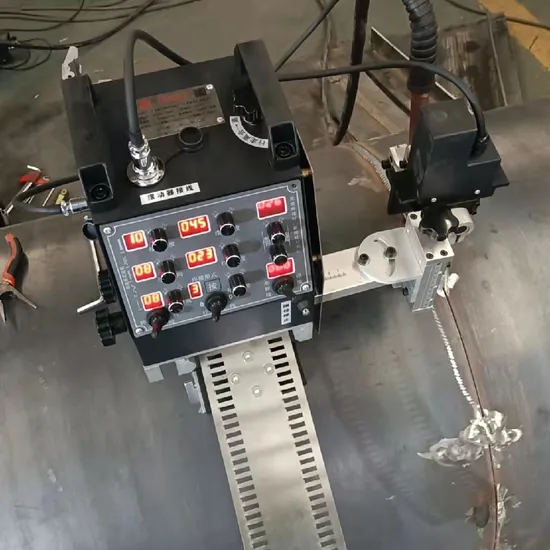

A simple, inexpensive and easy to use straight or flexible rail welder for tank welding.
Company Profile
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools,

---
