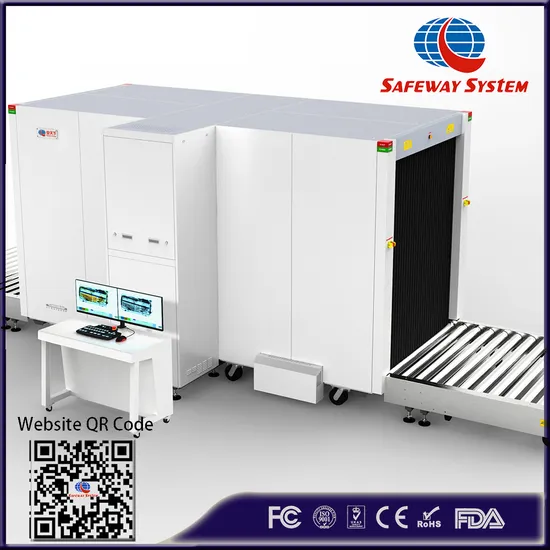

Best Price Dual View 150180 Airport Pallet Cargo X-ray Baggage Scanner From China Direct Manufacturer

Product Description

Product Description Luggage X-ray Machine - Dual View - Biggest Manufacturer
Big Airport Pallet cargo x-ray baggage scanner - Dual View - Biggest Manufacturer
High conveyor speed airport cargo scanner with two generator
Model: AT-150180D
AT150180D (dual view)
Tunnel size: 150*180cm

X-Ray Baggage Scanner Dual View with Two Generators for Airport Pallet Cargo Security Inspection -
Biggest Manufacturer with CE, FCC, FDA approved
AT150180D X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.
AT150180D belongs to the Windows product family, which is totally designed and manufacturer by our own company. Every year, we invest a large amount of labors and resources in the development of new technology and models. We own all the copyrights and patents, from the outlook design to the software.
Product highlights

Dual View
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter

Product Parameters
Top View

NO.	Item	Tested Value
1	Wire resolution	36	AWG
2	Penetration resolution	30	AWG
3	Spatial resolution	Vertical: 1.3 Horizontal: 1.3	mm
4	Penetration	34	mm
5	Organic matter resolution	1-120	mm
6	Grayscale, mixture resolution	1-60	mm
7	Inorganic resolution	0.2-14	mm
8	Effective material resolution	Compliant with GB15208.1-2018 standards

Side View

NO.	Item	Tested Value
1	Wire resolution	36	AWG
2	Penetration resolution	30	AWG
3	Spatial resolution	Vertical: 1.0 Horizontal: 1.6	mm
4	Penetration	40	mm
5	Organic matter resolution	1-120	mm
6	Grayscale, mixture resolution	1-60	mm
7	Inorganic resolution	0.2-14	mm
8	Effective material resolution	Compliant with GB15208.1-2018 standards

Technical performance for both views

NO.	Item	Tested Value
9	single dose	≤4.8	uSv(uGy)
10	leakage dose	<1	uSv/h(uGy/h)
11	noise level	No more than 60dB
12	conveyor belt speed	Around 0.2 m/s
13	Conveyor belt maximum load	2000kg
14	Maximum power consumption	3 kW
15	safety performance requirements	Compliant with GB15208.1-2018 standards
16	Electromagnetic Compatibility Requirements
17	Electrical Safety
18	Environmental adaptability
19	leakage current	No more than 5.0mA
20	film security	Compliant with ASA/ISO 1600 film safty standards
21	weight	4000kg
22	Working environment temperature/relative humidity	5ºC~40ºC;0%~90%
23	Storage temperature/humidity	-20ºC~+60ºC/10%~90%
24	Atmospheric pressure	86kPa~106kPa
25	Working power	AC220V+10%~-15%,50Hz±3Hz
26	operating system	Windows XP. Win 7. Win 10 (optional)

Software functions

NO	Item	Functions
1	Calibration	With fault self-checking function, the corresponding fault information can be displayed when a fault occurs
2	Image Processing	With color/black and white, local increase, high penetration, low penetration, super increase, organic highlighting, inorganic highlighting, inverse color, brightening, darkening, gray sweeping, zooming, organic marking, suspicious object marking, edge enhancement processing functions
3	image pullback	30 checked images can be played back
4	Number of image storage	Can store 50,000 checked images
5	image management	With image information query, opening, exporting, printing and other functions; exportable6 image formats (XF, PNG, BMP, JPEG, TIFF, GIF)
6	Operator management	Operators can be added and deleted, and the operator name, group, password, enabling status can be modified, and the usage log can be exported.
7	Dangerous Image Insertion (TIP)	You can add and delete TIP insert pictures, you can set the TIP enable status,Injection interval, floating range, motion judgment time, stationary judgment time; the user can check the operator by recording the information
8	Device diagnosis	The key components of the equipment can be diagnosed through the diagnostic interface, including detectors, motor forward and reverse rotation, infrared sensors, special keyboards, etc.
9	system settings	Programmable keys, imaging display (horizontal/vertical mirroring, maximum magnification Multiples, display recovery), scanning mode settings (two-way, direction, strong scanning, energy saving), auxiliary inspection (impenetrable, explosives, drugs), luggage Set the counter function
10	System device information	display software version number, copyright, device model, factory number, scan Counting, power-on time, output time, image file storage capacity and other information
11	training function	Automatic outsourcing training for new learners

Key components

NO	Item	Details
1	X-ray generator	Anode voltage: 200kV, cooling method: sealed oil cooling
2	electric drum	three phase
3	computer	CPU: Intel I3 3.3GHz Hard disk: 1T, memory: 4G
4	monitor	29-inch LCD monitor, resolution: 2560x1080
5	Console & Keyboard	console table, with dedicated keyboard

Packaging accessories

NO	List	Q'TY(PCS)
1	AT150180D complete machine	1
2	User manual, warranty card + certificate, mouse pad, packing list, key, sticker	1
3	Dedicated keyboard and mouse	1
4	W/ console with monitor	1
5	extended table	1
6	power cable	1

Certifications
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Installation Instructions

---
