Gn-15 Paddy Field Tire Farm Boat Tractor for Rice Field Cultivation

US$2,750.00-4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GN-15
Application Field
Agriculture
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Self Propelled
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
ISO
Color
Blue
Warranty
1 Year
Name
Boat Tractor
Power
15-28HP
Implements
Rotary Tiller, Disc Plough, Roller
Work Width
70-120cm
Gear
6 Forward,2 Reverse
Weight
630kg
Volume
4.5cbm
Advantage
for Dry and Water Land
Transport Package
Iron Crate
Specification
2.5*1.5*1.2m
Trademark
no
Origin
China
HS Code
6876798
Production Capacity
50000

Product Description

Paddy field tractor paddy field boat tractor paddy tire farm boat tractor for rice field cultivation

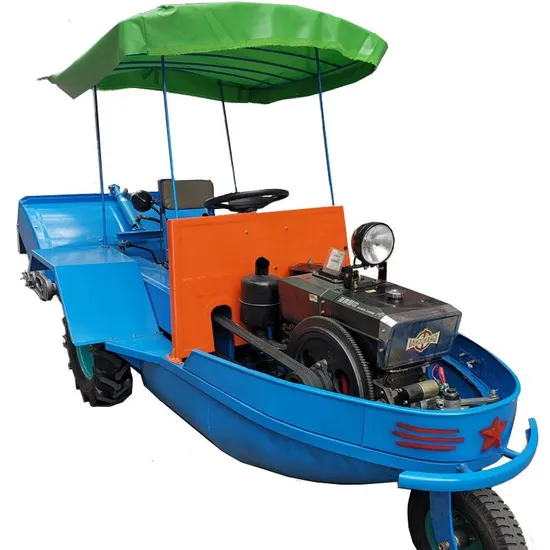

This boat tractor is a kind of agricultural machinery mainly used for tillage rice field, lotus root and other fields. This machine can work for both dry and wet/water land.
Mainly composed of diesel engine, gear box, clutch, guide wheel, direction machine, control system, lighting device, hull etc.
Specification
Model GN-15
type Boat tractor
power 15-18hp manual start diesel engine
22-28hp electric start diesel engine
dimension 3300*1300*1250mm
Wheel tread 1100mm
Wheel base 1920mm
weight 630kg
Min. Ground clearance 170mm
Work speed
6 forward gear, 2 reverse gear		 Forward: 1.89; 3.35; 5.36; 6.98; 12.38; 20.76
Reverse: 1.49; 5.56
Tyre size Front 400-8, 0.2-0.4MPa
Rear 600-12, 0.18-1.2MPa
Rotary tiller Work width 15-18hp, 70cm
22-28hp, 120cm
Gear box Gear transmission (3+1)x2
Optional implements disc plough, roller, fertilizer spreader
Pack volume 4.5CBM
