Stainless Steel Wire Mesh Conveyor Belt Metal Woven Mesh for Interior and Exterior Design

Product Description

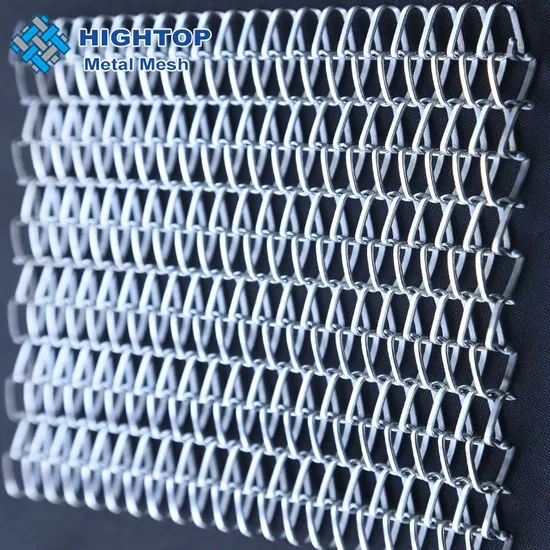

Spiral weave mesh, also called balanced weave belt, architectural conveyor belt, is composed of rods in horizon and bend wires in vertical.
The rods can be straight or bent. It was originally used in industry, mainly for the transportation of raw materials or products on the assembly
line. Later, because of the beautiful pattern, exquisite workmanship, and other characteristics, it has been gradually accepted and approved
by designers in the architecture system.
Material: stainless steel, carbon steel, brass, copper, other metal alloys.
Spiral wire mesh: Round or Flat
Spiral wire diameter: 1.2mm-10mm
Spiral wire pitch: 3mm-38mm
Rod Type: straight or bent
Rod diameter: 1.3mm-5mm
Rod pitch: 13mm-64.5mm
Surface treatment: Metal Original color, Titanium Coated, etc.
85% of customers choose Metal Original color
15% customer choose others

Normal Mesh Thickness(mm)	Spiral Pitch (mm)	Spiral Wire Dia. (mm)	Rod Wire Pitch (mm)	Rod Wire Dia. (mm)
7.7	16.94	1.63	19.05	1.63
8.9	16.94	2.03	19.05	2.03
7.3	10.16	1.43	12.70	1.42
6.7	10.16	1.63	12.70	1.63
6.0	7.26	1.22	8.47	1.22
6.0	7.26	1.42	8.47	1.42
6.4	7.26	1.63	8.47	1.63
6.1	6.35	1.42	6.35	1.42
6.4	6.35	1.63	6.36	1.63
4.0	5.08	0.91	6.35	1.22
5.2	5.08	1.22	6.36	1.22
5.6	5.08	1.22	5.08	1.22

Packing details of spiral wire mesh:
Hightop provides thick air bubble film and woven case packing.
Prevent any damages to the product during the transport.
Application of spiral wire mesh:
As a new decorative material, spiral weave mesh is widely used in architectural decoration, such as room dividers, guardrail, ceiling
decoration, wall decoration, door curtain, balustrades, shop exhibition stands, building facade, column cladding, craft projects, and more.

---
