Factory Price Fiberglass Mesh Weaving Machine for Making Fiberglass Mesh

Product Description

Product Description
Fiberglass Mesh Production Line For External Reinforced Insulated
Warping Machine
a)Through this machine, the fiberglass line yarn on the pay off will be rolled on a roller, which will save workshop space.
b) In front of every pay off, we will comply with one tension-er, which will control the line fiberglass winding tension.
c) With automatic alarm and shutdown function of broken wire
d)With automatic counting and shutdown function.

Width :	1000mm/2000mm/2400mm
Length:	0-10000m
Speed :	1000-1300m/hour
Motor power:	4.0KW
Overall dimension :	8.0x4.0x1.8m (2.4m width)
Weight :	1.8 tons (2.4m width)

Warping Machine
a)Through this machine, the fiberglass line yarn on the pay off will be rolled on a roller, which will save workshop space.
b) In front of every pay off, we will comply with one tension-er, which will control the line fiberglass winding tension.
c) With automatic alarm and shutdown function of broken wire
d)With automatic counting and shutdown function.

Width :	1000mm/2000mm/2400mm
Length:	0-10000m
Speed :	1000-1300m/hour
Motor power:	4.0KW
Overall dimension :	8.0x4.0x1.8m (2.4m width)
Weight :	1.8 tons (2.4m width)

Glued and Coating Machine
a)The coating line can produce the fiberglass mesh with max width at 1000mm,which adopts vertical type and can avoid the mesh hang down because of self-weight .At same time,the coating device adopts the structure of the air pressure to let the glue be coated more uniform and make the mesh joint better, and save the glue. b)Our drying baker adopts type is different from the resistance wire. It can heat the mesh in circle and avoid the mesh burned . It is more important that the consumption power is less . c)The heating temperature can be controlled in the control panel,which can ensure every part of fiberglass mesh will be the same heat. Of course the finished mesh quality will be very good. Not like the electricity, this part is in high temperature while that parts is in low temperature. d)We have a store cloth unit, which can make sure the machine is not stopped when the fiberglass mesh is load-off. The cloth store unit can store about 30m mesh. e)Our production capacity can reach 1300-1500m each hour.

Width :	1000mm/1200mm/2000mm or customized
Speed :	1300-1500m/hour(1.0m width)
Total power	10.0KW(1.0m width)
EngergyConsumpition	about 10.0cbm (1.0m width)
Weight	9.8 tons (1.0m width)

Splitting Machine
a)This machine is slitting equipment of high precision and high sensitivity,
b)With inflatable bearing is used for feeding and receiving materials.
c)It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.

Width	1000mm*150m(max roll
length	50mm*20strips
Motor Power	4.2KW
Speed	0-50m/min
Overall dimension	2.1x0.98x1.3 m
Weight	about 760kgs

Detailed Photos
Warping Machine

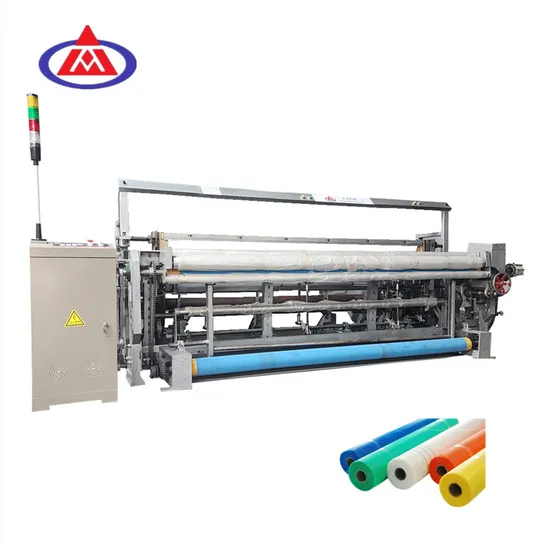

Fiberglass Mesh Weaving Machine
Glued and Coating Machine
Splitting Machine
Quality Control
Certifications

Packaging & Shipping
FAQ
1. Are the machines second-hand or new?
All of our machines are brand-new ones. All machines produce based on order

2. How to package the machine?
Machines will be packed by plastic film and fixed to the container by wire rope. 3. What's your payment terms?
T/T 30% as deposit, and 70% balance paid after sending you the debugging video but before delivery. 4. What's the delivery time?
Within 30 working days after receiving advanced payment
5.Your Company location?
The North No. I-10 Wire Mesh Industrial Zone, Anping County,Hebei Province

---
