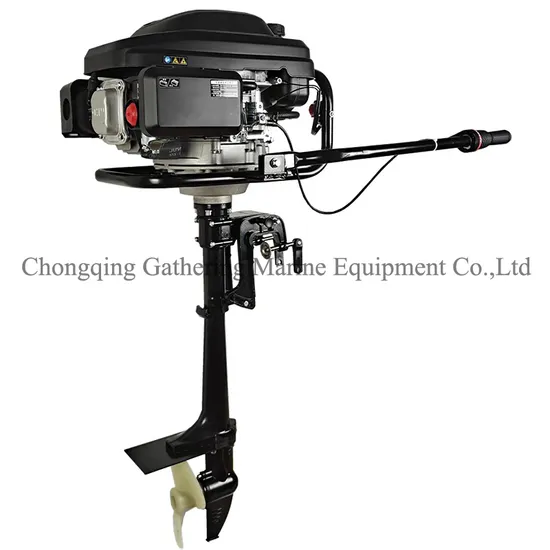

Plastic Boat Speedboat Motor Engine Fishing Boat Outboard Motor

Product Description

Plastic boat speedboat motor engine fishing boat outboard motor
Product description
Outboard motor, as the name suggests, is an motor for propulsion mounted on the outside of the hull (the side of the boat), usually suspended from the outside of the transom. With high integration and simple installation, outboard motors are the first choice of power for personal recreational boats, and are also widely used in fisheries, commercial operations and government law enforcement. According to the different energy sources, outboard motors are divided into fuel type and electric outboard motors
The working principle of fuel outboard motor is to convert the chemical energy of fuel into mechanical energy through the internal combustion engine, and then convert it into kinetic energy for the boat to move forward through the mechanical drive and propeller.

Detail Specifiction

Model	4 stroke 4 HP	4 stroke 6 HP	4 stroke 7HP
Displacement (CC)	55	140	196
Gear ratio	2.08 (27:13)	1:1.5 (16/24)	2.08 (27:13)
Cylinder	1	1	1
Max.output (kw)	2.9	3.75	5.1
Max speed (r/min)	4500~5500	2300~2500	4500~6000
Gear positions	Clutch control	F-N	F-N-R
Packing size (cm)	95x42x29	112.5x45*47.5	125x43x60
Ignition system	CDI	TCI	TCI
Cooling system	Air-cooling	Air-cooling	Air-cooling
Control system	Tiller control	Tiller control	Tiller control
Starting system	Manual start	Manual start	Manual start
Recommended fuel	#92Lead-free gasoline	#92Lead-free gasoline	#92Lead- free gasoline
N.W./G.W.(kg)	10.3/13.4	19.7/24.7	26.7/31.7
Bore x stroke (mm)	44x33	61x48	70x51
Recommended propeller range (in)	3-7 1/4" x5"	3-7 1/2" x5"	3-7 1/2" x5"
Recommended engine oil	Four stroke engine oil	Four stroke engine oil	Four stroke engine oil
Mixing ratio	/	/	/
Trim and tilt system	Manual tilt	Manual tilt	Manual tilt
Overall L x W x H (mm)	365x220x920	400x380x 1080	520x520x1200
Standard fuel tank capacity (L)	Within 1.4L	Within 1.2L	Within 1.4L
Optional fuel tank capacity (L)	/	/	/
Transom plate height (mm)	440	400~440	505

Feature
1, Easy to install, directly hanging on the stern plate, no stern alignment and other complicated links.
2, No need for engine room, save valuable space in the cabin.
3, itself is a complete propulsion system, simplifying the purchase and procurement process for users and shipyards.
4, Usually lighter in weight, which helps to improve the sailing performance of boats, especially high-speed boats.
Company: Chongqing Gathering Marine Equipment Co., Ltd. is a leading manufacturer and supplier of marine equipment from China. Our company was established in 2007.
We are professional in a hug range of marine equipment especially in Marine propulsion systems, marine external fire fighting system(Fi-Fi), G.R.P Life / Rescue Boats, Marine Environment Protection Equipment & Water Treatment Plant, Marine Life Saving Equipment LSA (Life rafts, life jackets, immersion suit, Life buoy etc), Marine Fire Fighting Equipment FCS( Self-contained Breathing Apparatus SCBA.
Emergency Escape Breathing Devices EEBD, SCBA Refilling Air Compressor, Fireman Suit, Heat Insulated Suit, Chemical Protective Suit etc.), Load Testing Water Bags and other marine application spare parts. Our products have been approved by IACS, such as CCS, ABS, BV, RINA ,GL, DNV, LR, KR, NK and are in accordance with the latest SOLAS regulation and IMO standard.

FAQ:
Q:How should I do if meet some trouble while using?
A: We can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
Q: What's the advantage compared to other suppliers?
A: Competitive price with high quality of product and superior service. We have professional sales team, production team and researching team.
Q:How is our customer service?
A: All our sales representatives can speak fluent English. They will answer all of your questions within 12 hours.
Q:What others can we offer?
A: Based on the wide product range, we offer the best One-Stop sourcing service. We will definitely save you a lot of time and money, and based on our huge quantity of shipment,we can get the best shipping service from the best forwarders. This will also help you to save a lot on the shipment.
Q:What is the payment of our company?
A. DP, DA ,T/T ,L/C,Paypal are all acceptable for us.
We also have other type of outboard, more details, please feel free to contact us.

---
