sawdust briquetting press machine/briquette press with wood chips/rice husk and other agriclture wastes
Brife introduction of briquette press :
1.Sawdust briquetting press machine can make the wood ,sawdust. rice husk ,coconut shell and othe biomass materials into briquettes.
2.The final wood briquettes charcoal which is used for cook heatig and barbeque which is very popurlar all over the world .
3.The briqutte press is very easy to operate and maintain.
briquette press :
1The moisture of raw material must be between 8%-12%.
2 Use the hot air drying heating system with excellent performance.
3.No binder or noxious chemical need to use.
The parameter of sawdust briquetting press machine :

Diameter of briquette	Motor	Capacity	Inlet diameter	Dimension
50mm	11kw	120-150kg/h	≤5mm	1.7×0.66×1.5m
50mm	15kw	180-200kg/h	≤5mm	1.7×0.66×1.5m
50mm	22kw	220-300kg/h	≤5mm	1.78×0.66×1.53m
60mm	15kw	180-200kg/h	≤5mm	1.7×0.66×1.5m
70mm	18.5kw	200-250kg/h	≤5mm	1.75×0.66×1.5m
80mm	18.5-22kw	220-300kg/h	≤5mm	1.78×0.66×1.53m

The material of sawdust briquetting press machine :
The process for briquetting press as follow:
1 Crush the raw material into small pieces (diameter is about 3-5mm)
2 Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3 Put the material into feed let of briquette machine
4 Produce the briquette stick from biomass material without any additive
5 Carbonized the briquette stick

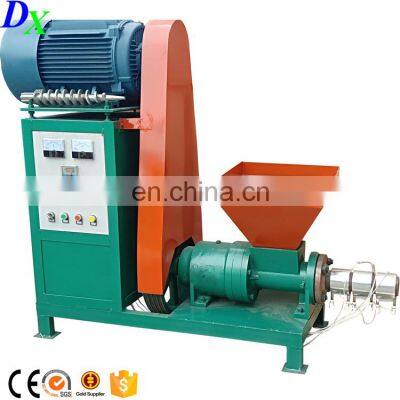

pictures of briquette press machine:

sapre parts:

---
