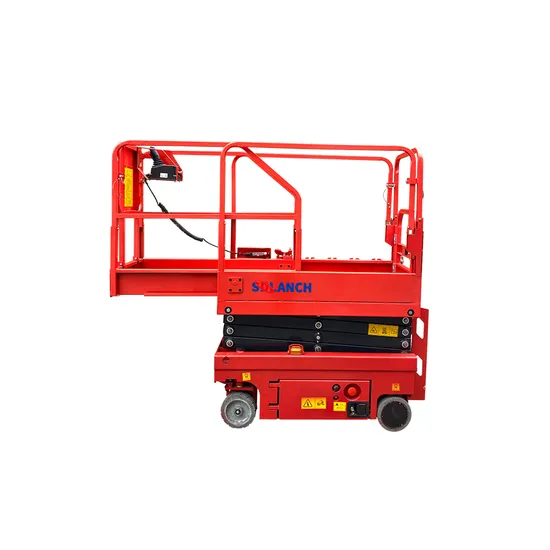

Easy Operation Safety Fast Moving Large Platform Hydraulic Mobile Scissor Lift Tables

US$4,099.00

1 Piece

US$3,999.00

2-4 Pieces

US$3,899.00

5-10 Pieces

US$3,799.00

11+ Pieces

Basic Info.

Model NO.

SDLS-12

Application

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism

Scissor Lift

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

The Maximum Working Height

13.8m

The Maximum Platform Height

11.8m

Safe Working Load

320kg

Table Extension Size

900mm

Minimum Ground Clearance

106mm/29mm

Lifting Speed

5m/Min

Battery

2*12V/80ah

Charger

24V

Max Gradeability

The Driving Speed of The Machine

3.5 Km/H

Transport Package

Null

Specification

2390mm*1160mm*2210mm

Trademark

SDLANCH

Origin

China

Packaging & Delivery

Package Size

120.00cm * 80.00cm * 60.00cm

Package Gross Weight

60.000kg

Product Description

Self-propelled scissor lifts are electric and available in a variety of models. Our self-propelled scissor lifts are construction-oriented and can improve operator productivity on demanding outdoor sites. They have the advantages of strong capacity, easy operation, safety, reliability and good quality. First of all, the buffer force of the lifting platform during the lifting process may be several times greater than the weight. In order to enable the lifting platform to lift stably and ensure the safety of the track chassis, the lifting chassis is placed on the hydraulic support system at the beginning of the design. Detailed Photos

Model	SDLS-08	SDLS-10	SDLS-12	SDLS-14
Safe working load	450kg	320kg	320kg	230kg
Maximum working height	9.8m	11.8m	13.8m	15.8m
Maximum platform height	7.8m	9.8m	11.8m	13.8m
Extended platform safe working load	113kg	113kg	113kg	113kg
Working platform size (length x width)	2270mm×1130mm	2270mm×1130mm	2270mm×1130mm	2630mm×1130mm
Overall dimensions (length x width x height, guardrails not folded)	2390mm×1160mm×2340mm	2390mm×1160mm×2470mm	2390mm×1160mm×2600mm	2760mm×1250mm×2600mm
Overall dimensions (length x width x height, guardrail folded)	2390mm×1160mm×1820mm	2390mm×1160mm×1940mm	2390mm×1160mm×2080mm	2760mm×1250mm×2080mm
Extended size of table	900mm	900mm	900mm	900mm
Minimum ground clearance	106mm/29mm	106mm/29mm	106mm/29mm	106mm/29mm
Wheelbase	1865mm	1865mm	1865mm	1865mm
Turning radius (inner wheel/outer wheel)	0/2.5m	0/2.5m	0/2.5m	0/2.5m
Lifting/driving motor	24V/4.5KWDC 24V/3.4KW AC	24V/4.5KW	24V/4.5KWDC 24V/3.4KW AC	24V/4.5KWDC
Lifting speed	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Machine travel speed (folded state)	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Machine travel speed (lifting state)	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Battery	4×6V/200Ah	4×6V/200Ah	4×6V/200Ah	4×6V/240Ah
Charger	24V	24V	24V	24V
Maximum climbing ability	25%	25%	25%	25%
Maximum allowable working angle	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Tire	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm
Total Weight	2250kg	2550kg	2960kg	3300kg

Model	SDLS-06	SDLSM-06	SDLSM-04	SDLSN-08
Safe working load	450kg	230kg	230kg	320kg
Maximum working height	7.8m	7.8m	5.8m	9.8m
Maximum platform height	5.8m	5.8m	3.8m	7.8m
Extended platform safe working load	113kg	113kg	113kg	113kg
Working platform size (length x width)	2270mm×1130mm	1680mm×780mm	1300mm×680mm	2270mm×810mm
Overall dimensions (length x width x height, guardrails not folded)	2390mm×1160mm×2210mm	1820mm×780mm×2020mm	1440mm×700mm×1860mm	2390mm×840mm×2370mm
Overall dimensions (length x width x height, guardrail folded)	2390mm×1160mm×1700mm	1820mm×780mm×1620mm	1440mm×700mm×1460mm	2390mm×840mm×1800mm
Extended size of table	900mm	800mm	550mm	900mm
Minimum ground clearance	106mm/29mm	106mm/29mm	106mm/29mm	106mm/29mm
Wheelbase	1865mm	1357mm	1020mm	1865mm
Turning radius (inner wheel/outer wheel)	0/2.5m	0/2 m	0/1.5m	0/2.5m
Lifting/driving motor	24V/4.5KWDC 24V/3.4KW AC	1.6KW/0.5KW	1.6KW/0.5KW	24V/4.5KWDC 24V/3.4KW AC
Lifting speed	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Machine travel speed (folded state)	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Machine travel speed (lifting state)	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Battery	4×6V/200Ah	4×6V/200Ah	2×12V/80Ah	4×6V/200Ah
Charger	24V	24V/25A	24V	24V/30A
Maximum climbing ability	25%	25%	20%	25%
Maximum allowable working angle	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Tire	Φ381×127mm	Φ305×100mm	Φ230×80mm	Φ381×127mm
Total Weight	2100kg	1200kg	860kg	2050kg
