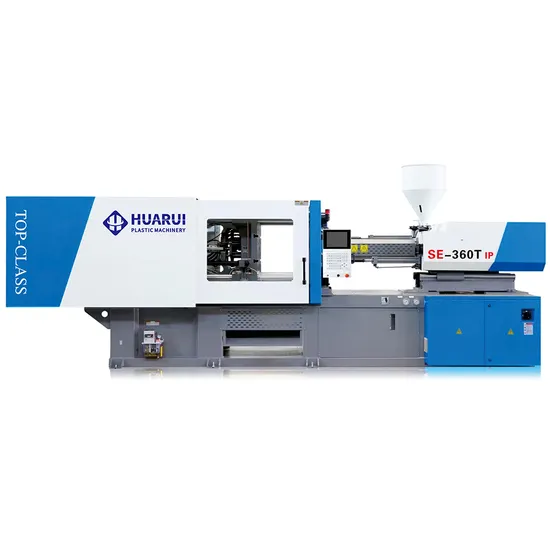

Horizontal Automatic Servo Energy Saving Plastic Injection Moulding Molding Machine

Product Description

Horizontal Automatic Servo Energy Saving Plastic Injection Moulding Molding Machine
Product Parameters

Se-360T/IP Plastic Injection Molding Machine Information
Item		Unit		A B C
Screw diameter		mm		80
Theoretical shot volume		cm³		1759
Shot weight (PET)		g		2040
Shot weight (PET)		oz		72
Length/Diameter ratio		L/D		25
Injection pressure		Bar		1367
Injection rate		cm³/sec		682
Max.screw speed		rpm		160
Clamping force		KN		3600
Max.daylight		mm		1020*970
Open stroke		mm		680
Space Between Tie-bars		mm		720*670
Min mould dimension		mm		270
Mould thickness range		mm		720
Ejector force		KN		120
Ejector stroke		mm		170
No.of ejector pins		unit		13
Max.motor power		KW		61
System pressure		MPa		175
Heater input power		KW		37
Oil filling capacity		L		400
Machine size		M		7.9*1.9*2.4
Net weight		KG		13500

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
