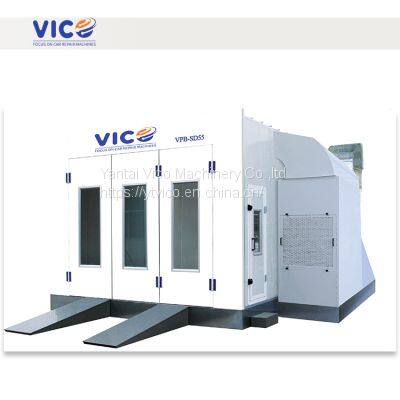

| Outside Size(mm) | 7000×5200×3370mm (LxWxH) Door size(mm):3000Wx2600H, white color | ||
| Inside Size (mm) | 6900×3900×2800mm | ||
| Service Door | One unit, 650*1800mm (WxH), white color | ||
| Wall panel | EPS (epispastics polystyrene) steel skin board, wall panel: 50mm thickness, tongue & groove style compound construction, Aluminum-alloy Frame. anti-flame and heat- insulation, galvanized steel roof panel. Metal sheer 0.376mm, galvanized sheer with painted white. | ||
| Basement | galvanized steel sheet and square steel pipe assembling, 2 rows of grills & 3 rows of diamond plates. Without bottom glass filters Ramps: 2 pieces, width 280*1800mm | ||
| Air Circulation System | Inlet Fan | Blower capacity: 18000m3/h | |
| Power: 5.5kw, centralized fan | |||
| Quantity: 1 set | |||
| None exhaust fan, positive pressure ventilation | |||
| Purification System | Ceiling Filter imports efficient three-dimensional spray glue cotton VF-600 | ||
| Heating system | #BT-14 diesel burner 80000~140000 Kcal/h, Stainless steel heating exchanger, argon arc welding; Max. temp:80°C, heating time: 5~8min (from20℃to 60℃), Fuel consumption:6-8L/vehicle | ||
| Lighting System | Ceiling light: 8unit x 3ea=24 pcs LED lamps. Power: 16w/each | ||
| Control system | Lighting, spray & baking switch, emergency stop, temperature control, timer | ||
| Environmental System | Pre-filters in the cabinet, roof ceilings and floor glass filters | ||
| Total power | 6.5Kw | ||
| Electric supply | 3PH, 220V/380V/415V, 50Hz/60Hz | ||
