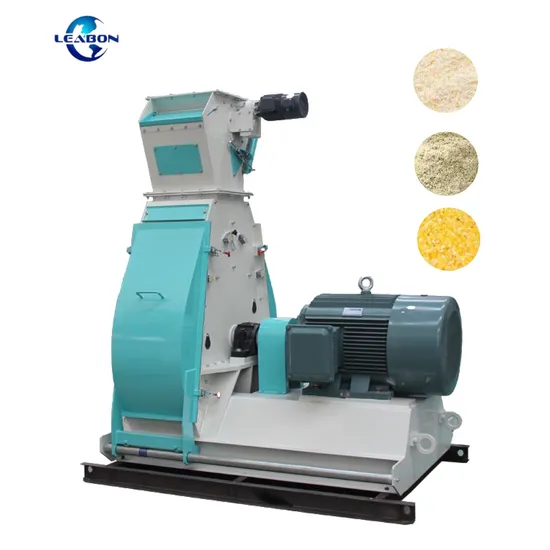

Newest Design Hammer Mill for Chicken Feed Corn Grain Rice Sorghum Grinder Water Drop Type Milling Machine

Product Description

Newest Design Hammer Mill for Chicken Feed Corn Grain Rice Sorghum Grinder Water Drop Type Milling Machine
Product Description
1. The grinding chamber is of water drop circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.

SFSP56 Series Hammer Mill

SFSP60 Series Hammer Mill

SFSP112 Series Hammer Mill

More Pictures
1.Widely used in feed mills, food factories, livestock farm, etc.
2.Used for crushing various kinds of pellet making raw materials such as corn, sorghum, wheat, bean, wood chip, etc; it is an ideal general type hammer mill;
3.Rotor has passed through high precision balance test; small vibration and long service life;
4.The hammer, screen and pin axle have gone through special heat treatment; they have a long service life and high crushing effect;
5.The operation door has a self -locking mechanism conveynient safe and reliable
Product Parameters

Model	SFSP 56X30	SFSP 56X36	SFSP 56X40
Rotor diameter(mm)	560	560	560
Main shaft rotation speed (rpm)	2950	2950	2950
Hammer's linear speed(m/s)	86	86	86
Crushing chamber width(mm)	300	360	400
Hammer Q'ty(pcs)	16	20	24
Power (kw)	11	22	37
Capacity (t/h)	1-2	3-4	5-6
Dimension(mm)	1400*860*1000	1430*860*1000	1630*860*1000

1. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
2. The imported components are used for key parts, resulting in long service life and low maintenance cost;
3. The moving full-wide operation door facilitates maintenance and replacing of beater;
4. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc. Detailed Photos
Internal Structure
Raw Materials & Final Products

Packaging & Shipping

Customer Feedback
Five-star praise from customer
Company Profile
Related Products

Horizontal Ring Die Feed Pellet Machine

Flat Die Wood Pellet Mill

Pellet Packing Machine

Pls click "Send" ask for more information and EXW price if you are interested in our Water Drop Type Animal Feed Milling Machine.

---
