Efficient and Energy-Saving Vertical Lifting Mixed Stirring Dryer for Plastic Material Particles Mixing Drying Repeatedly Circulating Hot Air to Remove Moisture

Product Description

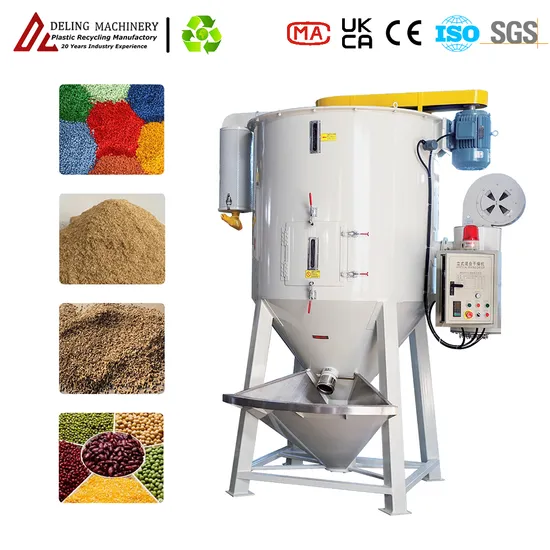

Vertical mixing dryer
Due to the continuous rolling of materials in the barrel, hot air is continuously transported from the center to achieve synchronous mixing and drying, saving time and energy. If drying is not required, simply turn off the hot air source and use only the mixing function. This product is also suitable for the mixed drying of granular materials, crushed materials, and color masterbatch.
Main features:
Efficient mixing: Using a unique mixing structure to ensure uniform mixing of materials during the drying process, avoiding dead corners and clumping.
Fast drying: equipped with advanced heating system and efficient hot air circulation device, significantly reducing drying time and improving production efficiency.
Energy saving and environmental protection: adopting energy-saving design to reduce energy consumption, and equipped with dust filtration device to reduce environmental pollution, in line with environmental protection requirements.
Intelligent control: Built in intelligent control system can accurately control temperature, humidity, and time, achieve automated operation, and ensure stable product quality.
Easy to clean: The vertical structure design is easy to disassemble and clean, reduces cross contamination, and is easy to maintain.

Model	Volume	Power	Heat Power	Fan Power	Plate Thickness	Rotating Diameter	Weight	External Diemensions
DL-500	1000L	2.2KW	24KW	1.1KW	2mm	219mm	450KG	1700*1700*2450mm
DL-1000	2000L	4KW	36KW	1.5KW	2mm	219mm	550KG	1700*2000*2750mm
DL-1500	3000L	4KW	42KW	2.2KW	2.5mm	273mm	700KG	1900*2300*3100mm
DL-2000	4000L	4KW	42KW	2.2KW	2.5mm	273mm	850KG	1900*2300*3400mm
DL-3000	6000L	5.5KW	48KW	3KW	2.5mm	273mm	1000KG	2100*2600*3500mm

Product Drawing

Detail Drawing

Prospects and advantages of the plastic recycling industry
1. Environmental protection
Reducing pollution: Plastic recycling can effectively reduce the environmental pollution caused by plastic waste and minimize the damage to land and water resources.
Resource conservation: By recycling and reusing plastic products, the demand for virgin plastics can be reduced, and non renewable resources such as oil can be saved.
2. Policy support
Government promotion: Governments around the world are increasingly focusing on environmental protection and have introduced multiple policies and regulations to encourage and support the development of the plastic recycling industry.
Economic incentives: In some countries, governments provide tax incentives and subsidies to plastic recycling companies to further promote industry development.
3. Market demand
Enterprise demand: With the increasing awareness of environmental protection, more and more enterprises are choosing to use recycled plastics to reduce their environmental footprint.
Consumer preference: The demand for environmentally friendly products has increased, and consumers are willing to pay a premium for products that use recycled materials.
4. Technological progress
Recycling technology: Plastic recycling technology continues to advance, making the recycling process more efficient, cost-effective, and of higher quality.
Innovative applications: The development of new materials and processes enables the application of recycled plastics in more fields, such as building materials, textiles, etc.
5. Global Trends
International Cooperation: Environmental organizations and enterprises worldwide are strengthening cooperation to jointly promote the development of the plastic recycling industry.
Standardization: The development of international standards helps to improve the quality of recycled plastics and promote their circulation and use in the global market.
The plastic recycling industry has broad prospects and significant advantages, which can not only reduce environmental pollution and save resources, but also receive dual promotion from policy support and market demand. With the continuous advancement of technology and the strengthening of global cooperation, the plastic recycling industry will usher in a brighter future.1.What information shall I provide when I request for quotation? Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc. 2. Are you trading company or manufacturer? We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 2017, address: No. 2 Changrui Road, Changyinsha Modern Agriculture Demonstration Park , ZhangJiaGang City, Su Zhou 215600, Jiang Su China. 3. What kind of products do you offer? We produce all equipment related to plastic recycling and production 4.What are the applications of these products? Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation. 5. Do you support product customization? Yes, not only we provide customized service but also provide solutions to our customer.
Partner with Us for a Sustainable Future in Plastic Recycling

---
