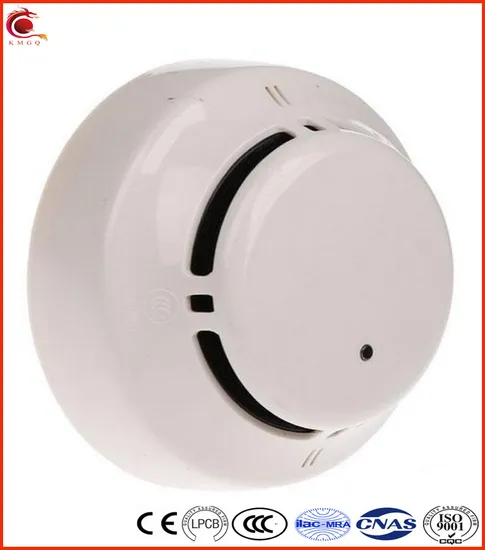

Fire Alarm Addressable Spot Type Photoelectric Smoke Detector

Product Description

Spot type photoelectric smoke detector
This spot type photoelectric smoke detetor can be used in supper market, civil building, motor car packing area, basement area, power station, and industry field to send warning signal to master if on fire.
1.2-bus, non-polarity
2.The second generation of distributing intelligentized product adopting special built-in MCU technology.
3. Adopts the E-code method, read/write the address by the coding device or controller.
4. With the black smoke alarm function.
Main technology specifications:

Content	Technical Data
Type	Point-type smoke detector
Operating voltage	Red indicator flashes in the event of routine-checking, lighting on in the event of alarm
Indicator	DC 14V~24V
Indicator	Current:<0.5mA	Alarm current:<1.5mA
Operating temperature	-10ºC~55ºC
Relative humidity	≤ 95%RH(40±2ºC)(Not condensation)
Mounting method	Working with LD10EN base, adopts the rotating installation type, easy to install
Max. external dimension	Φ104mm x 53(H)mm
Weight	0.18 Kg±0.005Kg

---
