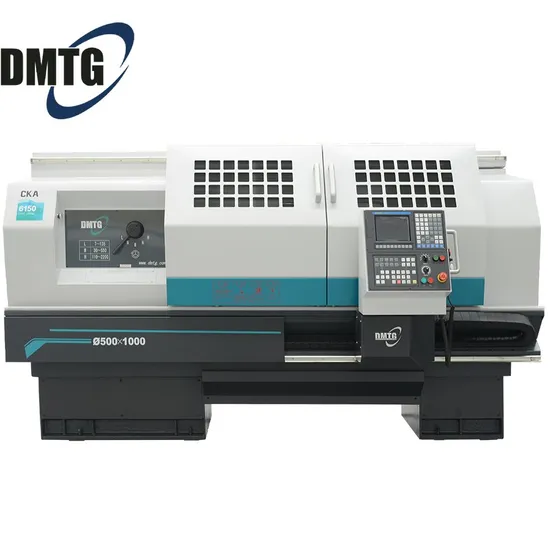

Dmtg Cke6150 CNC Flat Bed Lathe Dalian Machine Tool Lathe Torno CNC

US$15,000.00
1-4 Pieces
US$17,000.00
5+ Pieces

Basic Info.

Model NO.
CKE6150
Process Usage
Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.05~0.06(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month

Product Description

DMTG CNC lathe CKE6150 CNC Flat Bed Lathe Dalian Machine
Tool Lathe Torno Cnc
MAIN PARAMETER Max swing diameter over bed mm φ500
Max swing diameter over cross slide mm φ280
Max workpiece length mm 750/1000/1500/2000
Max cutting length mm 680/930/1430/1930
Max turning diameter mm φ500
Spindle center height mm 250
Bed guideway width mm 400
SPINDLE Spindle motor power kW 7.5/11
Spindle bore mm φ82
Chuck size mm φ250
Taper of spindle bore Front end φ90 1:20
Type of spindle nose D8
Spindle speed ranges r/min 7-2200
TAILSTOCK Diameter of tailstock quill mm φ75
Travel of tailstock quill mm 150
Taper of tailstock quill No.5 MT
TOOLPOST Tool shank size (Vertical 4-position) mm 25X25
ACCRACY X/Z axis positioning accuracy mm 0.018/0.021 (750)
0.024 (1000),0.026 (1500/2000)
X/Z axis repeatability accuracy mm 0.006/0.008 (750)
0.011 (1000),0.014 (1500/2000)
