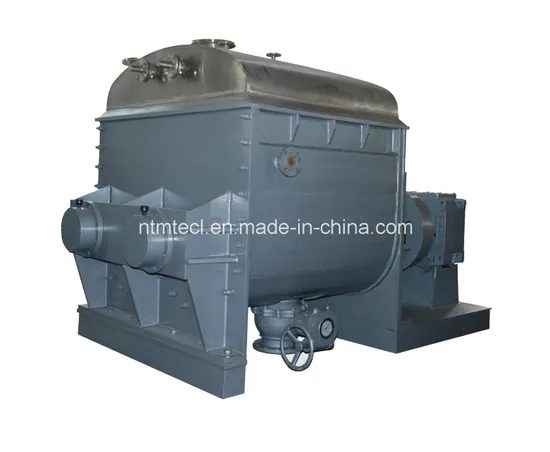

Kneader with Ball Valve, Tilting, Screw Extruding Discharge for CMC, Cellulose, Ink, Plasticine, Carbon, Rubber Mixer Machine

Product Description

Brief:
Our factory is the top manufacturer of kneader in China for over 30 years, our kneaders are widely in domestic Chinese market as well as aboard. Our double -blade kneader is available with variety of blades in different shapes as well as with number of discharging methods and mixing conditions. This double-blade kneader has already achieved considerable renown in a wide range of industries that deal with high and medium viscosity materials .
Industries we supplied: Silicone Compound/Rubber Mould Rubber Sealant Hot melt adhesive Ink Pigment CMC/Cellulose Plasticine/Silly Putty Chewing Gum Electrode Paste Carbon Pencil leads Pharmaceutical Soap
Variety of options:
1. Discharging Method
Tilting discharging
Screw extruding discharging with mesh straining
Ball valve/bottom plate ( manual, electrical, pneumatic)
Both tilting and screw extruding ( PATENT)
2. Heating
Electrical heating
Steam heating
Oil heating
3. lid sealing
Manual screw
Pneumatic
4.Vaucuum
Water-loop vacuum pump
Rotary Vane Pump
5. Cooling
Blade water cooling
Mixing vessel jacket water cooling
Plsease send e-mails for detaild parameters and drawings!
.

Model	Total volume	Working volume	Motor power	Discharge method
NH-1	1	0.6	0.75	Manual tilting
NH-2	2	1.3	0.75	Manual tilting
NH-5	5	3	1.5	Manual tilting
NH-10	10	6	2.2	Manual tilting
NH-40	40	24	3-5	Manual tilting
NH-100	100	60	5-7.5	Titling or bottom valve
NH-200	200	120	7.5-11	Titling or bottom valve
NH-300	300	180	11-15	Titling or bottom valve
NH-500	500	360	15-22	Titling or bottom valve
NH-1000	1000	720	22-45	Titling or bottom valve
NH-1500	1500	900	30-45	Titling or bottom valve
NH-2000	2000	1300	45-75	Titling or bottom valve
NH-3000	3000	1800	55-90	Titling or bottom valve
NH-4000	4000	2400	75-132	Bottom valve
NH-5000	5000	3000	90-160	Bottom valve
NH-6000	6000	3600	110-200	Bottom valve

---
