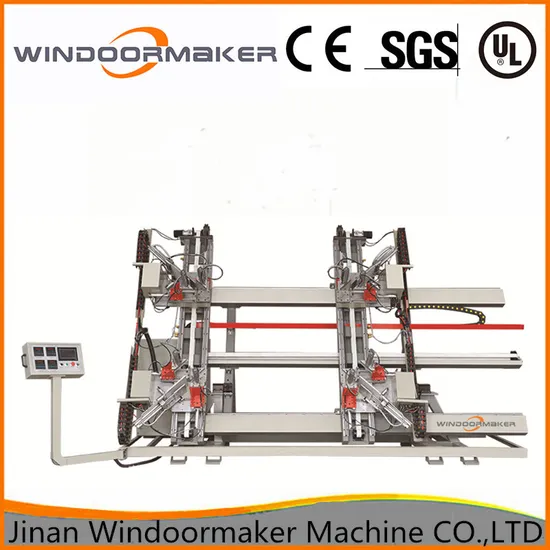

UPVC Window CNC Four Corner Welding PVC Window Making Machine Four Corner Welding Machine for PVC Profile Processing

Product Description

Product Description
Specification:
Used for four corner welding of PVC profile. In the whole working cycle with Omron CNC system driving the four heads, thus can achieve the high automatic and intelligent operation, automatic fabricating size control. With air control system can keep the machine running smoothly. Convenient adjustment of the crimp tooling can be met different profile requirement. Imported CNC system with a humanized design of human -machine interface, easy to operate and reliable operation. Driving system adopts imported Yaskawa servo motor drive the synchronous belt can keep positioning accuracy and long life use. Imported linear bearing system kept the running stable. Special "Know - How" technique keep the high corner strength. Vertical type is an ergonomically favorably position for the operator inserting upper profile. Advanced "Parallel welding "technique is available to achieve better welding result. Cant welding with mullion Technical Parameter:

Air Pressure:	0.5MPa~0.8MPa
Air Consumption:	200L/min
Input Voltage:	220V 50Hz
Input Power:	9KW
Welding Height:	25mm~160mm
Welding Width:	MAX.120mm
Welding Range:	400mmx400mm~1800mmx3000mm
Overall Dimension:	5000mmx2000mmx2800mm
Weight:	2800kg

Certifications
Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.

Machine at old customer

Packaging & Shipping

---
