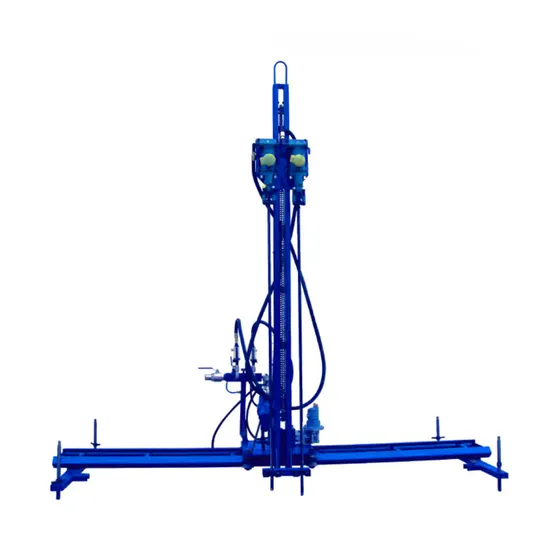

Air/Pneumatic Mobile Gang Drill with Yt28 Jackhammer

Product Description

Pneumatic mobile gang drill /Mobile line drilling machine is ideal for quarrying, rock explosion, especially making large diameter holes. (90mm/3.5 inch). It is mainly used for making holes for the passage of diamond wire. And also good for normal line hole drilling, such as holes for expansive mortar.
Practicality in use, derived from its simple construction, and the lightness of the structure are its main characteristics. Two control ways to choose, one is feeding by pneumatic motor, cross moving by handwheel.
The other one is both feeding and cross moving by pneumatic motor.
The drill is equipped with a pneumatic rotation head which combined with the hole hammer permits drilling linearity to be maintained, reaching considerable depths at high penetration speeds.
The support column has a special fixing system with a spherical joint and an anchoring down jack which permits drilling in all directions.
Other construction characteristics permit the drill height from the ground to be kept to a minimum, in the case of horizontal drill.

Model no.	Drilling direction	Feeding system & cross moving device	Jackhammer	Positional device
BL28-AHM	horizontal drilling	feeding by pneumatic motor	1*YT28	anchor-wedge
BL28-AV	vertical drilling	feeding by pneumatic motor,cross moving by handwheel	1*YT28	anchor-wedge and adjustable screw rod
BL24-2AM	vertical drilling	feeding by pneumatic motor,cross moving by handwheel	2*YT24	anchor-wedge and adjustable screw rod
BL28-2AM	vertical drilling	feeding by pneumatic motor,cross moving by handwheel	2*YT28	anchor-wedge and adjustable screw rod
BL24-2AM	vertical drilling	feeding and cross moving by pneumatic motor	2*YT24	anchor-wedge and adjustable screw rod
BL28-2AM	vertical drilling	feeding and cross moving by pneumatic motor	2*YT28	anchor-wedge and adjustable screw rod
BL24-4AH	vertical drilling	feeding and cross moving by pneumatic motor	4*YT24	anchor-wedge and fast positional leg
BL28-4AH	vertical drilling	feeding and cross moving by pneumatic motor	4*YT28	anchor-wedge and fast positional leg

Why Choose Us?
Xiamen Bestlink Factory Co., Ltd since 1985 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones.

---
