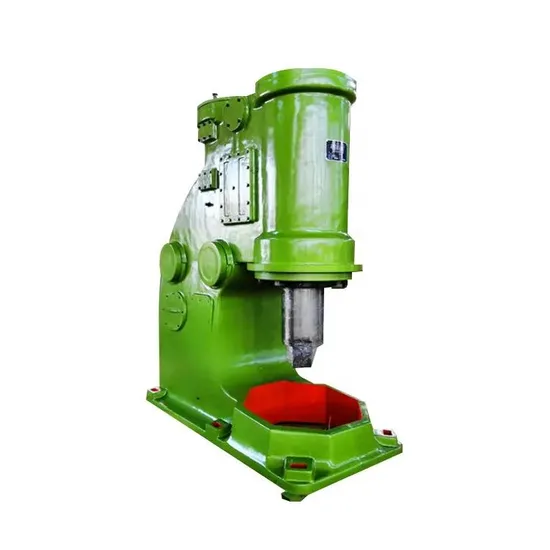

Professional 16kg Pneumatic Air Power Forging Hammer C41-55

Product Description

Specifications
Air Hammer C41-40

This pneumatic hammer is widely used for general Forging works, such as drawing-out, upsetting,punching, chiseling, forge, welding, bending and twisting. It is also used for forgn in bolster dies.

Ready operation: economic and converient

Easy to operate down, single blow, light or full series blow can be obtained as desired

A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cyliders being lubricated beforehand.

One piece, two piece designed avaiable.

1)Low noise ,reasonable structure , convenient operation.
2)Suitable for all kinds of forging works.

Features
1) Applications: a) Widely used for general forging works, such as drawing- out, upsetting, punching, chiseling, forge, welding, bending and twisting b) Also used for forge in bolster dies
2) Ready operation: economic and converient
3) Easy to operate down, single blow, light or full series blow can be obtained as desired
4) A special oil-pump is provided for lubricating the cylinders
5) Prior to running, turn the hand-crank of the pump to get the cyliders being lubricated beforehand
6) One piece, two piece designed available

Main parameters

Model	Unit	12001	12002	12003	12004	12005	12006	12007	12008	12009	12010
Specification			C41-25	C41-40	C41-75B	C41-150	C41-250B	C41-400B	C41-560B	C41-750B	C41-1000	C41-2000
Rated weight of the tup		kg	25	40	75	150	250	400	560	750	1000	2000
Maximum single hit energy		kg	275	0.53	1.0	2.5	5.6	9.5	13.7	19	27	54
Hit Number		min'1	250	245	210	180	140	120	115	105	95	80
Tupaxis to frame front		mm	260	235	280	350	420	520	550	750	800	950
Forges	Square	mm	40x40	52x52	75x75	130x130	145x145	220x220	270x270	270x270	320x300	350x350
workes	Round	mm	45	68	85	145	175	240	280	300	320	400
	Type		Y132M	Y132M1-6	Y160M-6-B3	Y180M-4B3	Y180L4-B3	Y200L4B3	Y280S-6-B3	Y280M-6-B3	Y280M-6-B3	Y315L2-6-B3
	Power	kw	2.2	4	7.5	18.5	22	30	45	55	75	132
	Hammer	kg	470	710	2500	3260	5000	8000	9800	17000	20000	48000
	Anil block	kg	250	420	950	1500	2500	4800	6720	9000	13000	24000
Outside size		mm	800x410x1214	1400)600x1500	1480x1355x1853	2390x1085x2150	2639x1000x2540	2789x1400x2884	3646x1500x3157	3905x1370x3175	4105)6750x3200	4200x2300x4390

Company Profile SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
