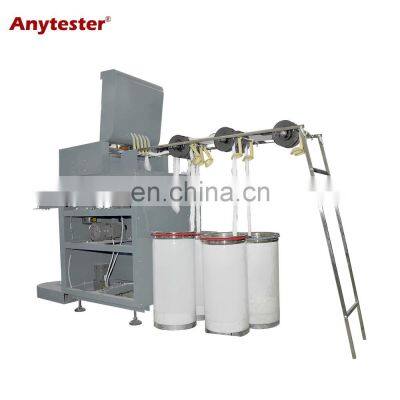

Product DescriptionAT204 Laboratory Drawing frame is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT204 Laboratory drawing frame is used to make drawn sliver from carded sliver. FeaturesEasy to operateTouch screen & PLC control;Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen; Skilled DesignFrequency converter of high efficiency to control roll speed;Doubling up to 8 slivers; Four-up-four down drafting structure; Can coiler to output and coil cotton sliver in sliver can;SpecificationModelAT204Fiber typeCotton or cotton-type chemical fiber;Customized for woolDoublingUp to 8Feed typeSliverOutput typeSliverSliver speed2, 4, 6, 8, 10, 12, 14, 16m/min, selectable Roll diameter¢35mmDrafting type4-roll, 3 straight line drawingDrafting structure4-up-4-downDrafting range2~30Doubling rangeUp to 8Pressurizing methodSpring pressure cradleOutput capacity0.25~1kg/h, adjustableSliver can sizeΦ250×550mmControl modeTouch screen & PLC controlPower supplyAC220V 50Hz, 650WDimensions1300×800×1750mm (L×D×H)Weight400kgPacking & DeliveryPACKAGESize(cm)130 (L) * 80 (W) * 145 (D)Weight 400 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Contacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
>>
