Product Details
Product Description
Product Description

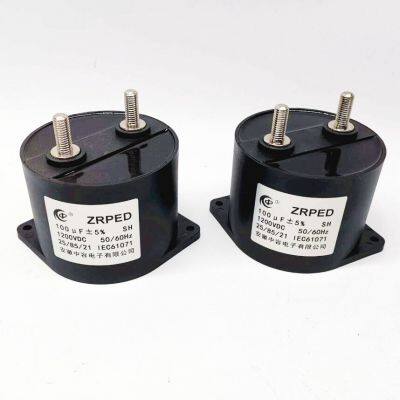

High Current Low Inductance Polypropylene DC Link Capacitors For Inverters Applications
Features
High RMS Current
Low ESR
Life Expectancy 100,000Hours
Filled with resin, Dry type
Non Inductive Type, Aluminum Case
Flame Retardant ROHS Compliant
Reference Standard: IEC 601071 and IEC 60068
DC-Link Film Capacitor Applications
DC Link and DC Filter Applications in Powe Converters for Uninterruptible power supplies
Wind Power Inverters
Solar Power Inverters
High Voltage Inverters
Traction and industrial drives
Impulse discharge capacitors for magnetizing and welding
Induction Heating Equipment
DC-Link Film Capacitor technical Data and Specification
| Technical Data and Specification | DC Link Capacitor
|
Rated Voltage
| 800-2000VDC
|
Capacitance Rage
| 1-200uF
|
Capacitance Tolerance
| ±5%
|
Reference Standard
| IEC 60252
|
Capacitance range
| 2-120μF
|
Tangent of loss angle
| ≤0.002 (100Hz)
|
Rated frequency
| 50Hz/60Hz
|
Dissipation factor
| 20X10-4(100Hz,20℃ )
|
Test voltage between terminal
| 2Un for 1.5seconds
|
Test voltage terminal to case
| (2Un +1000)VAC or 2000VAC - 50Hz for 60seconds
|
Insulation Resistance
| ≥ 3000MΩ.μF (100Hz, 20℃, 60seconds )
|
>>
