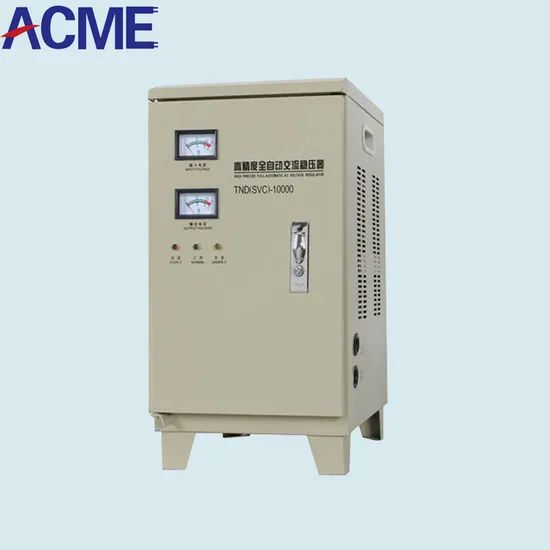

SVC Series Single Phase Voltage Regulator

Product Description

SVC Single-Phase High Accuracy Full Automatic AC Voltage Stabilizers
Product Introduction
SVC single-phase high accuracy full automatic AC voltage stabilizers is made of regulator, servo motor, automatic control circuit and so in. When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state.
This machine has advantages of small volume, light weight, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage, the series of stabilizers driven, of general type, the indeed voltage stabilized sources which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment
Application
It can be used in computers, test equipment, lighting systems, safety alarm systems-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, color film developing equipment
Technical Parameter

Input Voltage	160~250V
Output Voltage	0.5KVA-3KVA 220V and 110V 5KVA-30KVA 220V
Regulation Accuracy	220V±3% 110V±3%
Frequency	50Hz/60Hz
Adjust Time	<1 second(when input voltage changes 10% )
Efficiency	>95%
Relative Humidity	≤95%
Ambient Temperature	-5ºC ~+ 40ºC
Waveform Distortion	No Additional Waveform Distortion
Load Power Factor	0.8
Electric Intensity	1500V/min
Insulation Resistance	≥2MΩ

Specification Size Weight

Specification	Product Dimension	Cartons
SVC-0.5KVA	22×20.5×16.3	6
SVC-1VA	26.5×23.7×18	4
SVC-1.5KVA	24.3×23.5×20	4
SVC-2KVA	32×29.2×21.8	4
SVC-3KVA	34.5×29×26	2
SVC-5KVA	54×29.5×30.5	1
SVC-8KVA	54×29.5×30.5	1
SVC-10KVA	34.5×29.5×54	1
SVC-15KVA	36×34×66	1
SVC-20KVA	49.2×41×87	1
SVC-30KVA	49.2×41×87	1

SVC Three Phase High Accuracy Full Automatic AC Voltage Stabilizers
Product Introduction
This series three-phase stabilizer is the combination of high function single-phase stabilizer.
The incoming power of the power network is three-phase four wires system, the output power is also three-phase four wires with three electric meters to separately indicate three-phase and shift switch and voltage meter to shifting and surveying each phase.
Application
It is widely used in computers, test equipment, lighting systems, safety alarm systems-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, and office appliances.
Technical Specification

Input Voltage	Phase voltage 160~250V, line voltage 277V~430V
Output Voltage	Phase voltage 220V, line voltage 380V
Regulation Accuracy	±3%
Frequency	50Hz/60Hz
Adjust Time	<1s(when input voltage changes 10% )
Efficiency	>95%
Relative Humidity	≤95%
Ambient Temperature	-5ºC ~+ 40ºC
Waveform Distortion	No Additional Waveform Distortion
Load Power Factor	0.8
Electric Intensity	1500V/min
Insulation Resistance	≥2MΩ

Specification Size Weight

Specification	Product Dimension	Cartons
TNS-6KVA	39×31.5×77	1
TNS-9KVA	43.5×36×77	1
TNS-15KVA	48×36×70	1
TNS-20KVA	51.5×4.05×85	1
TNS-30KVA	59×46×109	1
TNS-40KVA	64.5×52.5×109	1
TNS-50KVA	64.5×52.5×109	1
TNS-60KVA	64.5×52.5×109	1

---
