260 Ton Injection Unit Efficient Plastic Moulding Machine

Product Description

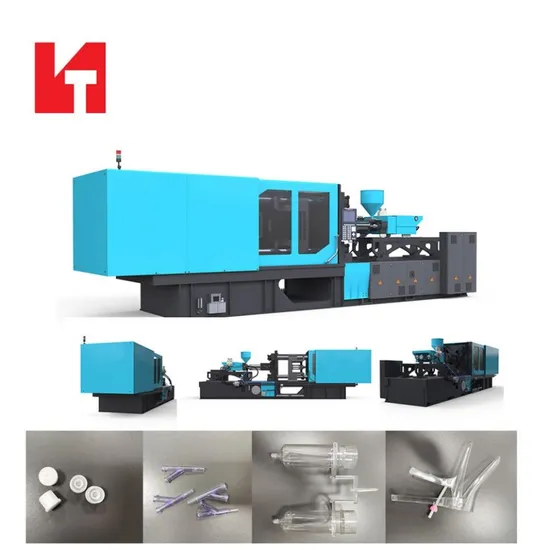

260 Ton Plastic Injection Molding Machine
Plastic injection molding machine consists of a plasticizing system, injection system, clamping system, and transmission system.
We have been applying die-casting technologies to injection molding machines for many years, like in mechanical, hydraulic, electric control, etc for comprehensive improvement, the perfect combination of dynamic pressure casting and speed.
To improve the production stability and save energy for medical products such as syringes, We specially add an infrared heating coil and servo motor system to the standard injection molding machine.

Item	Unit	NT230			NT260			NT280			NT330			NT400			NT500
SCREW DIAMETER	mm	45	50	55	55	60	65	55	60	65	65	70	75	70	75	80	70	75	80
SCREW L/D RATIO	L/D	22.2	20	18.2	23	21	19	23	21	19	22	20	19	221.4	20	19	21.4	20	19
INJECTION STROKE	mm	250	250	250	285	285	285	285	285	285	350	350	350	390	390	390	390	390	390
INJECTION SPEED	Mm/sec	103	103	103	94	94	94	94	94	94	97	97	97	97	97	97	97	97	97
SHOT VOLUME(THEORETICAL)	CM3	397	490	594	677	805	945	677	805	945	1161	1347	1546	1501	1723	1960	1501	1723	1960
INJECTION WEIGHT(PS)	g	361	445	540	616	732	860	616	732	860	1056	1225	1406	1366	1568	1784	1366	1568	1784
INJECTION PRESSURE	Mpa	221	179	148	202	170	145	202	170	145	202	174	152	194	169	148	194	169	148
INJECTION RATE	cm3/sec	163	202	242	223	265	312	223	265	312	321	373	428	373	428	487	373	428	487
SCREW SPEED	rpm	225			210			210			189			170			170
CLAMP FORCE	Kn	2300			2600			2800			3300			4000			500
OPEN STROKE	mm	475			560			590			669			725			810
SPACE BETWEEN TIE BARS	mm×mm	520*520			580*580			615*615			730*670			730*730			830*780
MAX.MOULD HEIGHT	mm	550			580			630			680			780			820
MIN.MOULD HEIGHT	mm	200			200			200			250			250			250
EJECTOR STROKE	mm	140			135			135			160			150			200
EJECTOR FORCE	Kn	62			62			70			70			79			110
EJECTOR NUMBER	N	5			9			9			9			13			13
MAX.PUMP PRESSURE	Mpa	16			16			16			16			16			16
SEVRO DRIVE POWER	Kw	30			37			37			55			55			55
HEATING POWER	Kw	12.5			18.5			18.5			22.5			29.5			29.5
MACHINE DIMENSION(L*W*H)	m×m×m	5.8*1.45*2.1			6.2*1.55*2.1			6.35*1.7*2.35			7.2*1.85*2.35			7.6*1.85*2.35			7.9*1.95*2.4
MACHINE WEIGHT(ESTIMATE)	T	6.5			8.6			9.3			12			16			18

Q: Are you a manufacturer or trading company? A: We are a manufacturer with decades of experience, located in Zhejiang province. Q: What is the product range? A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc. Q: Where is your main selling market? A: We have business domestically, in the USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes, we will arrange our skilled engineers for field installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have the source for molds and spare parts? A: Yes, we can offer competitive quality and reasonable prices. Customized as required. Q: What is the standard of the package? A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.

---
