Economic Flat Bed CNC Lathe Turning Machine

Product Description

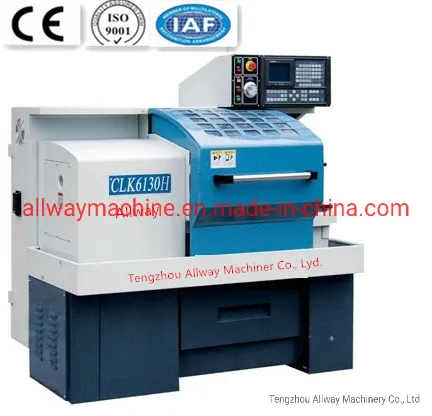

CLK6130E adopts horizontal lathe layout, can automatically processing shaft type and all kinds of small , medium-sized plate workpiece. Like inside and outside the cylinder surface, circular arc surface, end face, cutting groove,chamfering, thread machining, was widely used in machinery, electronics, instruments and meters, oil pump, nozzle, light industry, medical and other industries, was more suitable for vocational and technical education, has high efficiency and practicality.
Horizontal flat bed structure, integral pedestal , main components like lathe bed,pedestal adopts high strength material resin sand casting, full aging treatment, guideway by the high frequency quenching treatment, to ensure the stability.
Variable frequency speed spindle, high precision, high speed angular contact bearings are adopted for front and rear of support bearings of spindle system. high speed, high precision, strong rigidity, small thermal deformation, smooth running, low noise characteristics significantly.
longitudinal and cross movement shaft adopts servo motor drive, precision ball screw transmission, half closed loop control system with pulse encoder position detection feedback, fast response, high precision, long service life. Contact Angle 60 °thrust angular contact bearings is adopted specially for lead screws for screw bearing , can withstand the high axial load, to ensure the rigidity and precision of the feeding transmission device.

Specification			Unit	Model CLK6130E
Max.swing over bed			mm	300
Max.swing over cross slide			mm	100
Max. processing Dia.(don't pass slide/pass slide)			mm	300/100
Max. distance between end surface of standard chuck (doesn't contain claws) to enter of tailstock(standard live center) -----(support length)			mm	430
Max outside Dia.of through bar allowed cross inner of spindle(standard configuration)			mm	36
X.Z axis travel			mm	X:165 Z:350
X,Z rapid feeding			mm/min	X:4500/Z:6000
Screw specification			mm	X:20*4/Z:25*6
spindle		Spindle nose taper	NO.	Morse5
		Code for spindle nose		A2-5
		Spindle speed range	r/min	100-3000
		Chuck(standard configuration)	mm	160(manual)
Tool turret	Section size for tools		mm	16
	Tool numbers			4 /option:6 horizontal)
	type			vertical
Tailstock	Tailstock move type		mm	manual
	Tailstock spindle taper		NO.	MT3
	Tailstock sleeve travel		mm	100
cooling	cool pump		w	90
	Rate of flow		l/min	25
	volume		L	30
Lubrication type			standard	manual
Power form	AC voltage		V	3 380±10%
	Frequency		HZ	50±10%
Total Power capacity			Kw	7
Positioning accuracy of x,z axis			mm	X:0.02/:0.025
Re-positioning accuracy of x,z axis			mm	X:0.012/:0.016
Main motor power			Kw	2.2
N.W			mm	1000
Overall dimension(L*W*H)			Kg	1530*1200*1600

3.Standard configuration:
1) spindle speed 200-3000 rpm; Conversion frequency spindle motor 2.2KW
2) manual 3 jaw chuck 165mm;
3) Cross slide with T-slot;
4) 4 position electric tool post,16*16mm cutter bar
5) manual tailstock;
6) Manual lubrication
7) Work light
8) Leveling bolts
9)GSK-980TD CNC controller
4.Optional configuration:
1) FANUC,Siemens,Mitsubishi,HNC,GT66T,KND
2) Pneumatic or hydraulic collet chuck
3)hydraulic chuck;
4)6 position electric tool post;
5)Automatic intermittent lubrication

---
