PVC Pelletizing Extrusion Production Line/Plastic Recycling Machine

Product Description

Product Description
Detailed Photos
PVC Pelletizing Extrusion Production Line/Plastic Recycling Machine
This production line produces pellets by hot cutting, mainly PVC pellets. It is featured as advanced equipment, precise pelletizing and high producing capacity.
1. Main Process flowing:
PVC powder -Plastic mixer-Plastic extruder-extrusion mould-Pelletizer -air
Cooling system-vibrating sieve(optional)-Packing
2. Consist of the production line:
1 set SRL-Z 500/1000 Plastic mixer(equipped with screw loader)
1 set SJSZ 65/132 conical twin screw extruder (with mould)
1 set Pelletizer (Hot-cutting parts)

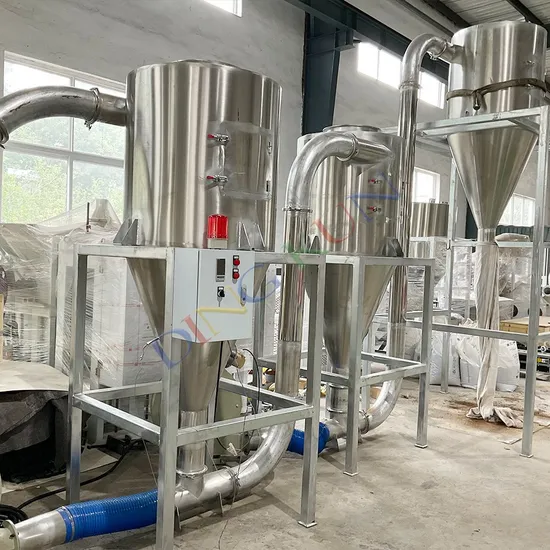

1 set Air cooling system, fan motor and slio.
Advantages:
The production line has the advantages of good plasticization, even mixing and compact structure; the auxiliary machine is of fan sending type collection, vibration separation and cooling, or strand cutting in the stainless water tank. The machines are of high automation and production efficiency.
Specification:

Model	SZ45	SZ65	SZ80
Power	15KW	37KW	55KW
Productivity	150kg/h	300kg/h	450kg/h
Pellets specification	3mm	3mm	3mm
Total length	15m	20m	24m

Packaging & Shipping
Company Profile
FAQ
1.Who are we?
We are based in Qingdao, China,sold professional plastic machine to more than 100 countries and regions in the world.
2.All of your products are made by your self or compacted via purchasing the others?
We have independent technical team who focus on making machines, all the products are made by our technical team.
3.Do you have any other services about your products?
We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
4. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
5.Why should you buy from us not from other suppliers?
We have more than 15 years experience in fabricating the machine, we can fabricating the machine according to customer request. Also we have good after service.

---
