Product Details
Product Description
Product Description
Specifications
cylinder TUBEs

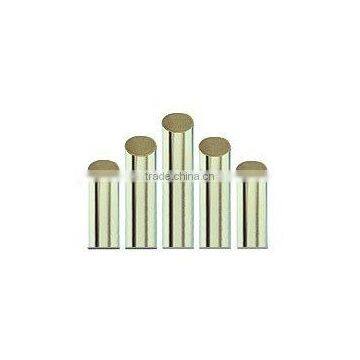

CHROMED BARS :.
Hard chrome plated steel bars Ck45
RANGE AND TOLERANCE.
- Diameter: 6-200 mm.
- Tolerance: ISO f-7, h7, .
- Surface roughness: Ra. 0.2-0.8
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- HRC18-20
Induction hardened & hard chrome plated steel bars CK45RANGE AND TOLERANCE.
- Diameter: 6-200 mm.
- Tolerance: ISO f-7, h7, .
- Surface roughness: Ra. 0.2-0.8
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- HRC58-62
TECHNICAL PROPERTIES.
- Induction hardening depth: 1-5,4 mm.
Quenched and tempered & hard chrome plated steel bars CK45RANGE AND TOLERANCE.
- Diameter: 6-200 mm.
- Tolerance: ISO f-7, h7, .
- Surface roughness: Ra. 0.2-0.8
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- HB260-280
Hard chrome plated steel tubes DESCRIPTION.
Hard chrome plated steel tubes.
RANGE.
- Outside diameter: 12-120 mm.
- Wall thickness: 2-12 mm.
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- Chrome layer hardness: 66-68 HRC.
- HRC18-20
- Steel grade: CK45.
TOLERANCES.
- Outside diameter: ISO f-7.
- Surface roughness: Ra.0.2-0.8
Induction hardened & Hard chrome plated steel tubes DESCRIPTION.
Induction hardened & Hard chrome plated steel tubes.
RANGE.
- Outside diameter: 12-120 mm.
- Wall thickness: 2-12 mm.
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- Chrome layer hardness: 66-68 HRC.
- HRC58-62
- Steel grade: CK45.
TOLERANCES.
- Outside diameter: ISO f-7.
- Surface roughness: Ra.0.2-0.8
Quenched and tempered &Hard chrome plated steel tubes
DESCRIPTION.
Quenched and tempered &Hard chrome plated steel tubes.
RANGE.
- Outside diameter: 12-120 mm.
- Wall thickness: 2-12 mm.
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- Chrome layer hardness: 66-68 HRC.
- HB260-280
- Steel grade: CK45.
TOLERANCES.
- Outside diameter: ISO f-7.
- Surface roughness: Ra.0.2-0.8
Hard chrome plated stainless steel bars RANGE AND TOLERANCE.
- Diameter: 20-200mm.
- Tolerance: ISO f-7.
- Stainless grades: AISI 431, AISI 316, AISI 304.
- Surface roughness: Ra. 0.2-0.8
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
Hard chrome plated steel bars 42CrMo4 RANGE AND TOLERANCE.
- Diameter: 8-150 mm.
- Tolerance: ISO f-7.
- Surface roughness: Ra. 0.2-0.8
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
Induction hardened & chrome plated steel bars 42CrMo4 RANGE AND TOLERANCE.
- Diameter: 20-120 mm.
- Tolerance: ISO f-7.
- Surface roughness: Ra. 0.2-0.8
TECHNICAL PROPERTIES.
- Hard chrome plated thickness: 0.012-0.015mm, 0.015-0.02mm, 0.02-0.025mm, 0.025-0.03mm
- Induction hardening depth: 0.75-3.5 mm.
Company Profile
Hangzhou Chinabase Machinery Co., Ltd.
Hangzhou Chinabase Machinery Co., Ltd. is a group of manufacturing facilities, specialize in power transmission products, CATV products, mechanical seal, hydraulic and Pheumatic, and promotional products.we offer one-stop solution for the purchase of mechanical power transmission products in China. We can supply a full-range of power transmission products like chains, sprockets and plate wheels, pulleys, gearboxes, motors, couplings, gears and racks. Our product range also covers locking assemblies (clamping elements/locking device), taper bushes, QD bushes, bolt-on hubs, torque limiters, shaft collars, motor bases and motor slides, chain detachers, chain guides, universal joint, rod ends and yokes. More importantly, we make special parts according to supplied drawings/samples and warmly welcome OEM inquiries.We offer full solutions for the purchase of CATV equipments in China. As a leading CATV equipment provider, we supply and source complete series of CATV equipments and components for your customers. Our product ranges from digital receiving equipments to most of cable and optic fiber transmission equipments. It includes satellite receiver and antenna, frequency modulator and channel mixer, optic laser transmitter, 1,550nm EDFA, optic receiver, optic work and relay station, amplifier, tap and splitter, patch cord, adaptors and attenuators, coaxial cables and others. Due to our wide product range and rich experiences in this industry, we are confident to provide our customers flexible and diversified services.we supply chromed bar and tubes for hydualic and pheumatic cylinders.With many years' experience in these lines, we have been distinguished from other suppliers in China by our advantages in competitive pricing, on-time delivery, prompt responses, on-hand engineering support and good after-sales services. Additionally, all our production procedures are in compliance with ISO9002 standards.Our company pays particular attention to customers' needs, listening to the specific requirements of each customer and guaranteeing total satisfaction.
