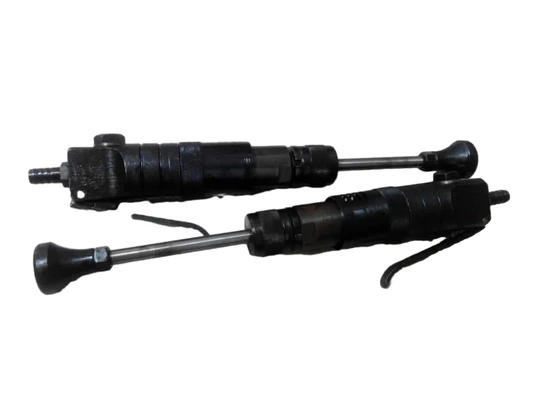

D3/D4/D6/D9/D10 Pneumatic Tamping Machine Air Sand Rammer

US$40.00-80.00 1 Piece (MOQ)

Basic Info.

Model NO.

D3/D4/D6/D9/D10

Machining Process

Hydraulic

Structure

Rotor Type

Productivity

240m²/h

Feeding Height

1400mm

Vibrating Amplitude

2.6mm

Certification

CE

Condition

New

Color

Orange

Transport Package

Cartons or Others

Specification

CE

Trademark

GM

Origin

China

Production Capacity

50000PCS/Year

Product Description

Production Description
Air tamping machine is used for sand casting mould workshop,repairing the lining of steel making furnace and impacting the concrete on building
Specification

	D3	D4	D6	D9	D10
Weight	3.5kg	4.5kg	6.5kg	10kg	10kg
Length	410mm	525mm	1140mm	1200mm	1200mm
Piston stroke	92mm	90mm	120mm	120mm	120mm
Piston dia	22mm	22mm	35mm	32mm	32mm
Impact frequency	15Hz	15Hz	10Hz	10Hz	10Hz
Air consumption	10L/s	10L/s	15L/s	15L/s	15L/s
Air hose size	13mm 16mm	13mm 16mm	13mm 16mm	13mm 16mm	13mm 16mm
Working pressure	0.63Mpa	0.63Mpa	0.63Mpa	0.63Mpa	0.63Mpa
