Electric Polyurea Waterproof Spray Equipment Fd-2f

Product Description

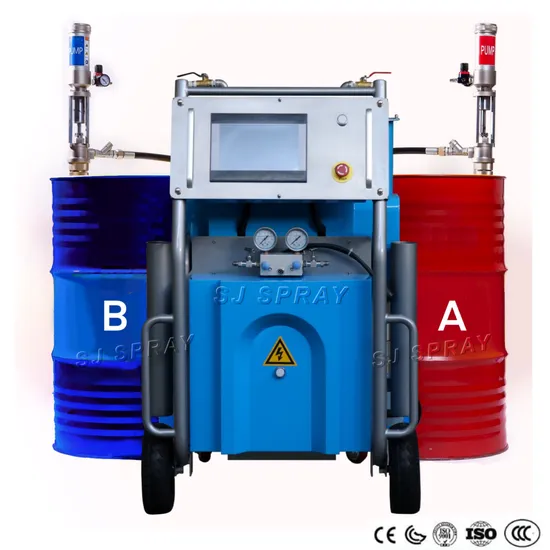

Electric polyura/polyurethane spray machine FD-2F

Product Description
1.Electric models are more energy-saving and power-saving, light and efficient.The electric model can be sprayed with polyurea, and can work under 220V single-phase voltage, with high work efficiency and higher conversion rate.
2.Electric model with barrel, can be used for large-scale projects, can be matched with a lifting pump, two spraying methods, suitable for large-scale projects such as waterproofing, swimming pools, ships, pipeline anti-corrosion, etc.
3.Electronic components and seals are all imported brands, which are stable and not easy to break after long-term use.
4.The pipeline has voltage protection to ensure the safety of electricity use.Spray gun, heated hose can be used with G/R/A/C/O.

Product Parameters

Project	FD-2F
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Working pressure	35MPa (350 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
0utput	2-20kg/min
Gun Type	Spray/Injecting
Total power	11000W
Voltage	230V 1-ph / 3-phs 380V/400V 3-ph
Material hopper	40L(each one)
Max heating hose length	90 meters(295.3 feet)can extended to 150 meters
Machine size	804*842*1230mm
Gross weight	280KGS
Net weight	250KGS

Standard configurations
1.Slef-cleaning spray gun 1 unit 2.Heated hoses 15 meters 3.Accessory box(tools,seals)
This machine can also be used without a transfer pump, or it can be used with transfer pump.
Packaging & Shipping
Export fumigation-free wooden box packaging, sea and air transport more robust and reliable.


Exhibition
For more than ten years since its establishment, it has participated in dozens of foreign exhibitions and has very stable partners all over the world.
Certifications
CE certification, rich export experience

---
