Basic Info.
After-Sales Service Provided
Engineers Available to Service Machine Overseas
Package
Wooden Box and Waterproof Film
Color
According to Customers Request
Manufacture
Pure Water Oil Detergent Cosmetic Medicine Bottle
Blowing Method
Stretch Blow Molding Machine
Features
Full Automatic Servo Drive
Transport Package
Wooden or Waterproof Film Packaging
Specification
High Quality Bottle Blowing Machine
Production Capacity
500PCS/Year
Packaging & Delivery
Package Size
3.00cm * 1.50cm * 1.90cm
Package Gross Weight
1800.000kg
Product Description

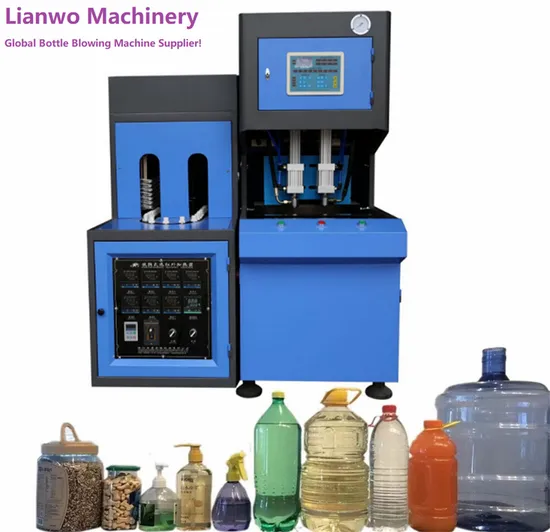

Bottle Blowing Machine
Machine Features:
1. It adopts double-bend mould clamping structure, strong clamping force, stable and reliable movement.
2. Easy to operate and maintain, operated by only one person.
3. The preforms are heated by high-quality infrared lamp,high penetrating, to make sure each preform be heated uniformly. The width and height of the reflector can be adjusted, which can be suitable for heating preforms with different wall thicknesses.
4. Pneumatic action and blowing are divided into two parts to meet the needs of different air pressures for action and blowing, and provide high pressure for blowing bottles.
5. Small size and compact construction with no space waste.
Main Parameters:
Item | Lw-3L | Lw-5G |
Theoretical Output | 1100pcs/h | 100pcs/h |
Max Container Volume | 3L | 22L |
Max Container Diameter | 95mm | 280mm |
Max Container Height | 320mm | 450mm |
Number of Cavity | 2 Cavity | 1 Cavity |
Heating Power | 18Kw | 40Kw |
Low Pressure Air Consumption | 0.8m³/min | 0.8m³/min |
High Pressure Air Consumption | 3.0m³/min | 3.0m³/min |
Mould Thickness | 220mm | 500mm |
Weight | 600Kg | 650Kg |
Main Machine Size | 1.6*0.61*1.58m | 2.65*0.74*1.75m |
Heater Size | 1.71*0.57*1.36m | 2.95*0.67*1.62m |
Free Designs for Customers:
Types of Bottles Produced by Bottle Blowing Machine:
Company Introduction:
Taizhou Lianwo Machinery Co., Ltd is located in Huangyan, Taizhou, Zhejiang Province, the hometown of mould in China. The company produces high speed automatic blow molding machine, automatic hollow blow molding machine, automatic high-capacity blow molding machine, semi-automatic blow molding machine and blow mold.
The blow molding machines are widely used in the production of mineral water bottles, edible oil bottles, food packaging bottles, daily chemical bottles, agricultural medicine bottles, and many other plastic container packaging fields. Taizhou Lianwo Machinery Co., Ltd can provide a variety of bottle making equipments and very suitable technical solutions.
Taizhou Lianwo Machinery Co., Ltd has professional design, production team, which provide a solid foundation for producing excellent quality and performance blow molding machines. Our blow molding machines are exported to America, Europe, South korea, the Middle East, Southeast Asia, Central Asia, Africa and other countries and regions, they are well received and used by our customers.
Let's create a better tomorrow hand in hand!
Machine Workshop:
Delivery:
FAQ:
1.What is your delivery time?
All the machines will be produced according to the order. Usually in 20 working days, depends on your projects.
2.What about installing in customer factory?
After the machines arrive at your factory, we can arrange engineer to install the machines and train your workers.
3.What is the guarantee time?
We offer a one-year warranty and a lifetime after-sales service.
>>
