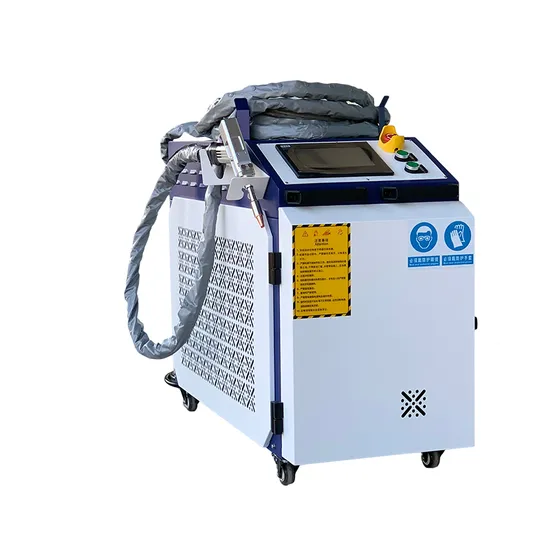

Portable 1000W Fiber Laser Welding Machine for Metals

Product Description

Hand Laser Welder Steel Ring Portable 1000W 1500W Fiber Handheld Metal Laser Mould Welding Machine Price for Sale
Product Description
The handheld fiber laser welding machine is a new generation of laser welding equipment. It is a non-contact welding machine. The operation process does not require pressure. Its working principle is to directly irradiate a high-energy laser beam on the surface of the material. Through the interaction between the laser and the material, the material is melted inside, and then cooled and crystallized to form a weld. It has overturned the working mode of the traditional laser welding machine. It has the advantages of simple operation, beautiful welds, fast welding speed, and no consumables. Ideal for replacing traditional argon arc welding, it excels in joining thin stainless steel plates, iron plates, galvanized plates, and a variety of other metal materials with perfection and efficiency.
Detailed Photos

Product Parameters

Machine type	Hand held type
Laser Power	1500W laser source
Laser source	Fiber
Fiber laser optic length	8M
Output power turn-ability (%)	10-100%
Laser wavelength	1080nm
Fiber diameter	100μm
Frequency of pulse	1~5000khz
Spot size	Φ 0.2-1.8mm
Impulse width	≤10ms
Welding depth	0.8-3mm
Ambient Temperature	10ºC~35ºC
Wire feeding	Including
Application	welding, cutting and cleaning, clean the weld 4 in 1
Cutting	Less 3mm metal
Cleaning	For rust,pain,oil etc. cleaning
Welding	All kinds of metal welding
Laser Cooling	water cooling
Total Power	<12KW
NW	220kg
GW	285kg
Package dimension	1380*625*1745mm

Our Advantages

1. Wide welding range: The handheld welding head is equipped with 5m-10M original optical fiber, which overcomes the limitations of the workbench space and can be used for outdoor welding and long-distance welding.
2. Convenient and flexible to use: The handheld laser welding is equipped with a mobile pulley, which is comfortable to hold and can adjust the workstation at any time without a fixed workstation. It is free and flexible and suitable for various working environment scenes.
3. Multiple welding methods: It can realize welding at any angle: lap welding, butt welding, vertical welding, flat angle welding, internal angle welding, external angle welding, etc. In addition, it can also complete cutting, and welding and cutting can be switched freely.
4. Good welding effect: The welding area has little heat impact, is not easy to deform, blacken, and has traces on the back. The welding depth is large, the melting is sufficient, and it is firm and reliable. The weld strength reaches or even exceeds the parent material itself.
5. No need to polish the weld: continuous welding, smooth without fish scale pattern, beautiful without scars, less subsequent polishing process.
6. Save labor cost: Compared with arc welding, the processing cost can be reduced by about 30%. The operation is simple and easy to learn, ordinary workers can take up their posts after a short training, and can easily achieve high-quality welding effects.
Application
It is mainly used for the fixed position welding of large and medium-sized sheet metal, cabinets, chassis, aluminum alloy door and window frames, stainless steel wash basins and other large workpieces, such as inner right angle, outer right angle, and flat welds. The heat affected area is small during welding, the deformation is small, and the welding depth is large, and the welding is firm.
It is widely used in the kitchen and bathroom industry, home appliance industry, advertising industry, mold industry, stainless steel products industry, stainless steel engineering industry, door and window industry, handicraft industry, household goods industry, furniture industry, auto parts industry, etc.
