US$15,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000, CE
Power
Water Cooling Diesel 30 HP/3 Cylinder
Power Source
Diesel Engine
Starting System
Electric Start,12 Volts Battery
Self Load Shovel
140L Auto-Lock Door for Shovel
Mixing Capacity
750 Liter
Dimensions
3620*1800*2500mm
Transport Package
Nude in Container
Production Capacity
100 Units/Month

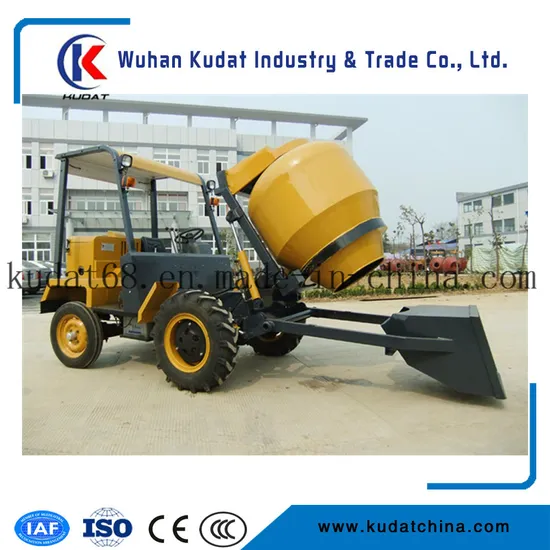

Product Description
Description:
Reliable chassis of 1.5ton site dumper
Simple driving system fixed for the mixing drum, low and easy maintenance required.
Simple structure provide a low cost and all site accessed mixer
Main Specifications:
| Model | SD1000M |
| Drum Capacity | 1000L |
| Mixing Capacity | 750L |
| Chassis | Articulated Chassis |
| Gearbox | 4+4 gear box |
| Gear Pump | Two |
| Drum Tipping | Hydraulic |
| Drum Swivel Control | Automatic |
| Engine | Changchai ZN385Q diesel,3 cylinders,30hp,water cool |
| Steering | Hydraulic |
| Clutch | Constant-contact,single-disk,dry clutch |
| Tire: | Four wheel 10-16.5 |
| Driving | 4WD |
| Starting System | Electric start,12 Volts Battery |
| Overall size: | 3620L*1800W*2500H |
| Weight | 2770kgs |
| Water Pump | 1.5inches with water meter and good quality pipe |
Shipping, Delivery & Maintenance
| 20' container can be loaded with | 2 complete units |
| Delivery time | 3 weeks after confirmation of the order |
| Maintenance |
The mixer should be cleaned after work every day, kept lubricated at all points where grease caps have been provided every week.
The Engine oil is suggested to be changed every 70 operating hours. |
>>
