US$10,000.00-100,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Disc Type Grinding Machine
Processing Object
Splined Shaft
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Zirconia Bead Diameter
0.1-0.6mm
Separation System
Sieve Separation
Transport Package
Wooden Case
Specification
SMD1-SMD1200
Production Capacity
100-700L/Batch
Product Description
Product Description

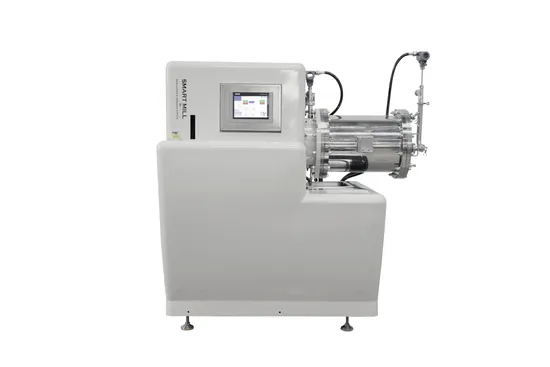

Meet the Hoosun Precision SMD 25 Grinding Machine, your smart solution for grinding micro and nano materials. Designed for precision and efficiency, this machine ensures top-quality standards in your manufacturing processes.
Performance Advantages
High Precision Lapping: Achieve a uniform and smooth surface finish critical for SMD components, thanks to advanced lapping technology. Automated Control: Simplify operations and minimize errors with our automated control system. Customizable Settings: Easily adjust pressure, speed, and duration to meet specific material needs. Durable Construction: Built with high-quality materials for long-lasting performance in tough environments. User-Friendly Interface: Manage with ease using an intuitive control panel, boosting productivity. Technical Specifications:
Fineness: 100nm - 10μm Zirconia Bead Diameter: 0.1-0.6mm Separation System: Sieve Separation Optional Materials: Tungsten carbide, Polyurethane, Zirconia, Silicon carbide, Silicon nitride Efficiency Highlights:
Ultrafine Grinding: Achieve fineness below 200μm with 2-3 times the output of ordinary sand mills. Independent Operation: Separate material grinding and separation for precise results. Applications:
Nano materials, MLCC, Lithium batteries, Silicon carbon electrodes, Alumina, Ceramic inks Why Choose Hoosun?
Precision: Ensure exact specifications with advanced lapping. Automation: Streamline your processes and reduce errors. Flexibility: Customize settings for diverse material needs. Durability: Invest in a robust machine built to last. Ease of Use: Increase productivity with a user-friendly interface. Equipment Specifications:
Model Chamber Rev. Motor Power Bead Diameter Bead Rate Batch Capacity
SMD10 | 10L | 0-15m/s | 13.5/15KW | 0.2 - 2.0mm | 80 - 85% | 50 - 250L |
SMD25 | 25L | 0-15m/s | 18.5/22KW | 0.2 - 2.0mm | 80 - 85% | 100 - 700L |
SMD50 | 50L | 0-15m/s | 45KW | 0.2 - 2.0mm | 80 - 85% | 200 - 1500L |
SMD100 | 100L | 0-15m/s | 55/75KW | 0.2 - 2.0mm | 80 - 85% | <2500L |
SMD150 | 150L | 0-15m/s | 75KW | 0.2 - 2.0mm | 80 - 85% | 500 - 3500L |
SMD200 | 200L | 0-15m/s | 75/90KW | 0.2 - 2.0mm | 80 - 85% | 1000 - 5000L |
SMD300 | 300L | 0-15m/s | 90/110KW | 0.2 - 2.0mm | 80 - 85% | >7500L |
SMD600 | 600L | 0-15m/s | 250KW | 0.2 - 2.0mm | 80 - 85% | >10000L |
SMD1200 | 1200L | 0-15m/s | 355/450KW | 0.2 - 2.0mm | 80 - 85% | >20000L |
