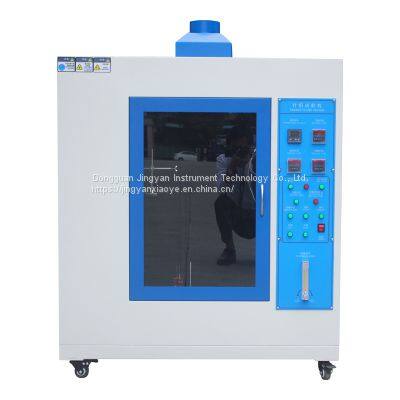

High Quality Combustion Test Chamber Flammability Tester Burning Testing Equip

Product Details

Product Details

Product Description

Product Description
Appliance:
Needle flame test instrument is suitable for lighting, low voltage electrical appliances, household appliances, machine tool electrical appliances, motor, electric tools, electronic instruments, electrical instrumentation, information technology equipment, electrical business equipment, electrical fittings, accessories and other electrical and electronic equipment and components, components, research, production and quality inspection departments, can also be applied to insulation materials, engineering plastics industry or other solid combustible materials.
Standard:
GB4706.1, GB5169.5-2008, IEC 60695-2-2 IEC 60695-11-5 and ect. relevant standards.
Needle Burner
the hole Φ 0.5mm ± 0.1mm, outside diameter ≤ Φ 0.9mm, length ≥ 35mm,
Material
stainless steel
Burner Angle
tilt 45 ° (test) or vertical (adjust the flame height)
Application Time
0-999 .9 s ± 0.1s adjustable (normally choose to 30s)
Burning Duration
0-999 .9 s ± 0.1s, auto record, manual suspension
Flame Height
12mm ± 1mm (with a height measurement apparatus)
Burn Gas
95% of the butane gas (Pressure:Less than 0.2MP)
Temperature Measurement range
0 ~ 1000 ℃
Flame Temperature Requirements
from 100 ℃ ± 2 ℃ 700 ℃ ± 3 ℃ rise to the time
in 23.5 seconds ± 1 seconds
Thermocouple
Φ0.5mm (K type)
Experimental Background
black background
Test Procedure
automatic control
Reference Standard
IEC60695 -11-5-2004, GB/T5169.5-2008
Inside Dimension
0.5 cubic meters, stainless steel chassis
Equipment Dimensions
1000mm wide × 650mm deep × 1300mm high
Power Supply
AC220V ± 5%, 50Hz, 0.3KVA
