Basic Info.
Spindle Number
Single-Spindle
Machine Structure
Square Tube Lathe Bed,Vacuum Table
Work Holding
Vacuum Table with T-Slot
Spindle
1.2kw-9.0kw Water Cooling(0-24000rpm) for Choice
Available Tools(mm)
Tools Number 8-12 PCS
Drive System
Stepper Motors(Servo Motors for Choice)
Working Voltage
AC380V±30V,50Hz
Control System
DSP/Ncstudio System or Customer Specified
Processing Precision
0.01mm
Machine Dimensions(mm)
3100*2050*1650mm
Transport Package
Plywood Box, Free of Fumigation
Specification
CE, FDA, SGS
Origin
Jinan City, Shandong Province
Production Capacity
50 Sets Per Month
Product Description

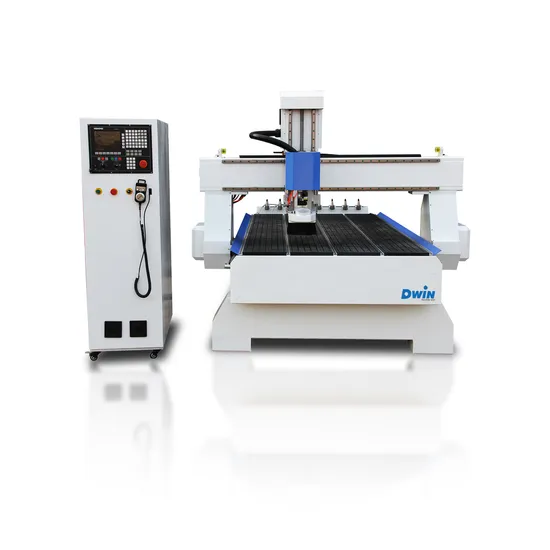

3D CNC Router Woodworking Machine Cheap Price (DW1325)
3D CNC Router Woodworking Machine Product Features:
1).Adopt linear-square orbit, whole machine is welded with seamless steel structure, can heavy loading.
2).Taiwan HIWIN square guide rail, ball screw for z axis and gear-wheel for x and y axis
3).Taiwan Syntec control system. Bus control, namely a line control all drives, convenient maintenance.
4).Italy HSD 9.0kw air cooling spindle( 0-18000rpm ),Water cooling spindle (0-24000rpm)
5).Automatic tool change, convinient and swift
6).With better compatibility, can math with many programs such as Type3, artcam, castmate, CAM, etc.
3D CNC Router Woodworking Machine Technical Specification:
| Model | DW1325 | Optional |
| Working area(X*Y*Z,mm) | 1300mm*2500mm*200mm | Customization is available |
| Machine structure | Square tube lathe bed,vacuum table | |
| Work holding | Vacuum table | Vacuum table with T-slot |
| Machine dimensions(mm) | 3100*2050*1650 | |
| Processing precision | 0.01mm | |
| Reposition precision | 0.02mm | |
| Max idle speed | 35000mm/min | |
| Max working speed | 25000mm/min | |
| Spindle | 5.0KW-9.0KW water cooling(0-24000rpm) for choice | Air cooling(0-18000rpm) for choice |
| Available tools(mm) | 3.175~20, 8pcs | Tools number can specified (less than 12 pcs) |
| Drive system | Stepper motors | Servo motors |
| Working voltage | AC380V±30V,50HZ | |
| Command code | G code(*,nc,*mmg,*u00,etc.),*eng | |
| Control system | NC-studio control system | Taiwan SYNTEC System or customer specified |
| Compatible software | Compatible with any software generating G code file in Windows | |
| Other optionals: Dust collection, Tool cooling system with sink instead of vacuum system |
3D CNC Router Woodworking Machine Samples:
3D CNC Router Woodworking Machine Application Industry:
>>
