Mould Polyester Cylinder Could Cover Stainless Steel Wire Mesh for

Product Description

Paper Mills Stainless Steel SS 304 316 306L 14mesh 60mesh 90mesh Wire Mesh Shrinking Mesh for Cylinder Mould Product Description
Huatao group supplies different material cover fabric for Cylinder Mould.
Material of Nylon Cover: Nylon (Polyamide /PA), Polyester, Stainless Steel.
You can also call Cylinder Mould Wire as Cylinder Mould Covering, Wire Mesh Mould Covers, Mesh For Cylinder Mould Covers;
Mesh count Range of Nylon Cover: from 10mesh to 100mesh.

Advantages Of Cylinder Mould Wire Mesh:
1:The paper is made of paper surface weave, which can improve the quality of paper and paper, and reduce the two sides The retention rate of fine fibers and fillers is used to tighten the structure of the two-sided weft lock to increase the stability of the fabric and the stiffness of the fabric. It increases the function of dehydrating, the running stability is good, the net current load is reduced obviously, the high net thickness increases the dehydration capacity, and the guaranteed Paper dehydration speed improves speed.
2:The interface way can be customized according to your requirements, such as color size and specification.
3:Our enterprise has passed China Quality Certification Center,
4:Provide ODM/OEM service.100% quality assurance. Fast delivery.

Stainless Steel Wire Mesh
1)304 Stainless Steel Wire Cloth is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.2)304L Stainless Steel Wire Cloth has similar properties as 304ss but lower carbon content to permit better welding.3)316 Stainless Steel Wire Cloth has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.4)316L Stainless Steel Wire Cloth has similar properties as 316ss but lower carbon content to permit better welding.
Technical Specification
Stainless Steel Wire Mesh Technical Specification

Stainless Steel Wire Mesh
Mesh			Density ( root / cm )		Warp wire diameter	Weft wire diameter
Mesh / inch	Mesh / cm	Mesh / cm2	Warp	Weft
6	2.4	6	2.4	2.4	0.90	0.90
8	3.2	8	3.2	3.2	0.61	0.61
10	4.0	10	4.0	4.0	0.61	0.61
12	4.8	12	4.8	4.8	0.56	0.56
16	6.4	16	6.4	6.4	0.46	0.46
20	8.0	20	8.0	8.0	0.42	0.42
25	10	25	10	10	0.35	0.35
30	12	110	12	9.5	0.30	0.32
35	14	150	14	10.5	0.27	0.30
40	16	190	16	12	0.27	0.30
45	18	250	18	14	0.25	0.28
50	20	300	20	15	0.25	0.28
55	22	330	22	15	0.25	0.28
60	24	372	24	15.5	0.25	0.28
65	26	430	26	16.5	0.23	0.25
70	28	460	28	16.5	0.22	0.24
80	32	590	32	18.5	0.19	0.21
90	36	850	36	23.5	0.15	0.18
100	40	1020	40	25.6	0.13	0.15

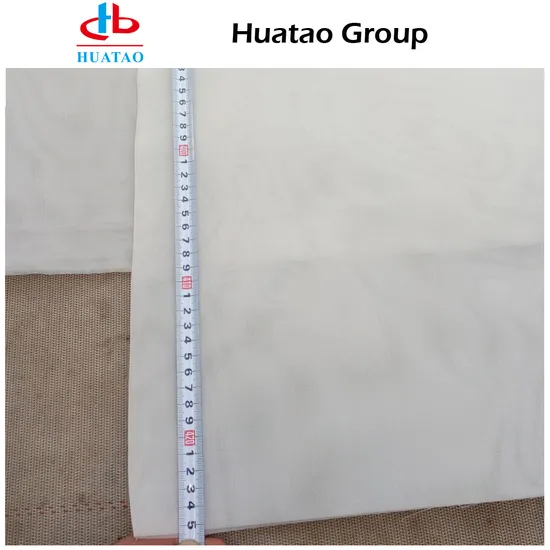

Details Photos

Our Professional Team

---
