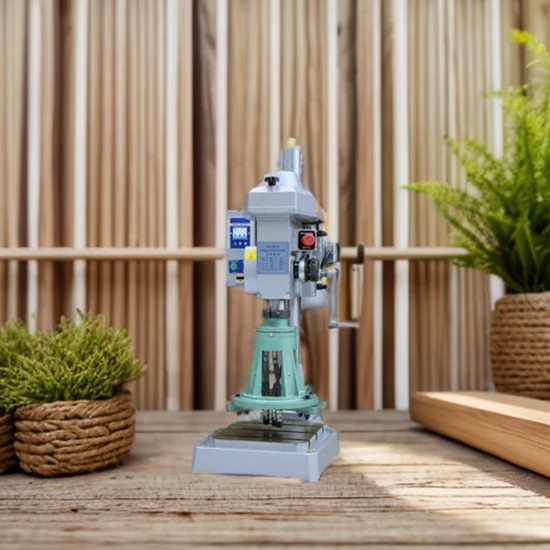

6516 Fully Automatic Tapping Machine Gear Type Double Head Tapping Machine Can Be Equipped with Foot Switch

Product Description

Product Description
Features
Operating this machine is a breeze, even for beginners! Enjoy seamless automatic cycle operation and an innovative automatic reverse device. Plus, customize your tapping with an adjustable depth feature.

The main technical parameters
Speciflation		GT2-223
Table Dimension		340*360mm
Dimension		730(L)×520(W)×820(H)
The head of the move from up and down		300mm
Spindle Diameter		70mm
Spindle Taper		MT2
Distance from spindle to table		470mm
spindle travel		65mm
spindle speed		590/400/260
Motor power		1.5KW
tapping capacity		M3-M16
weight		310KG

Hot Product
Company Information
FAQ
1. Can the drilling machine perform tapping work?
No, the drilling machine is designed exclusively for drilling holes.
2. Is the machine's spacing adjustable?
Absolutely, you can adjust it to suit a variety of applications.
3. Is the cutting tool prone to breaking?
With proper operation, the cutting tool is robust and not prone to breaking.
4: What information is needed for a non-standard machine request?
Please provide the following details for customization.
1: A comprehensive drawing of your product.
2: Samples of your product for reference.
3: Precise measurements of your product's height, width, and thickness.
4: The maximum and minimum ranges of the holes required.
5: Details on the material's thickness, width, and the total number of drilling and tapping holes needed.
5: Are non-standard machines capable of both tapping and drilling?
Yes, they are fully capable of performing both functions.
6. Payment Terms
Upon signing the contract, a 40% deposit is required to activate the agreement.
7. Production Arrangement
Production commences once the deposit is received. Expect the CNC milling machine to be ready within 20 days, and both the automatic drilling and tapping machines within 15 days.
8. Packaging
We strongly recommend opting for wooden box packing to ensure protection during transportation.
9. Acceptance Checks Upon product delivery, please perform a thorough check: assess for any packing damage or leakage, confirm product and accessory quantities, and inspect all machine details. In case of any issues, photograph the problem and contact us immediately.
10. Warranty Period
Enjoy peace of mind with a one-year warranty. We provide free components within the first year, barring intentional damage, and offer lifetime maintenance. Post-warranty, component and shipping fees apply.
We offer on-site debugging and training for customers who cover the associated costs, including airfare between China and the buyer's location, and provision of accommodation and meals.
Our 12-month warranty starts from the machine's arrival date. If issues arise, our engineers will respond onsite within 24 hours. We continue supporting machine maintenance even after the warranty period. Each CNC machine comes with an English maintenance and operation manual.
11. OEM Service
We welcome purchase orders featuring customers' brands or trademarks.

---
