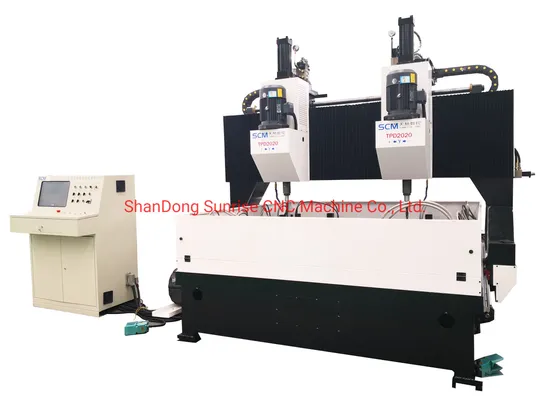

Double-Spindle CNC Drilling Machine for Steel Plate (Hydraulic Feeding)

Product Description

Product Description

Applicable Industry:
This is special CNC machine for drilling plates and flanges, mainly used in steel structure, tower, bridge and other industries.
Product Feature Machine is controlled by PLC & servo motor, ensure precision positioning. The machine have 4 work area with individual reference, workpieces can be clamped by hydraulic clamps at any area for drilling. Can use Auto CAD drawing directly,also can process NC file which generated by TEKLA. Scrap cleaner can collect all iron scraps and cutting liquid which is recycling. The key mechanical, hydraulic and electric parts are all famous brands.
Specification

Model	TPD2020-2
Machine type	Gantry movable single spindle CNC drilling machine
Max work piece size (L×W)	2000×2000mm
Thickness of work piece	100m If work piece is small size, it can be overlapped and processed at the same time.
Height from table top to ground	800mm
Drill unit type	Hydraulic feeding
Clamp type	Hydraulic clamp with 12 clamps
Drill head quantity	2 (Morse 4#)
Max drill diameter	Φ50mm
Spindle speed	120~560r/min (frequency control)
Electric control type	Germany SIEMENS PLC smart 200
CNC axis quantity	4
With function of CAD/CAM automatic generation
With function of hole site memory (memory hole site if power off suddenly) and drill pause
Total power	≈24 kW
Total weight	About 7500
Overall dimension	5.5×3.01×2.85m

Packaging & Shipping

Packing Details : Packing, this model need 1*40'OT;
Delivery Details : 30-50 days after get the first payment.

1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
After Sales Service

India and some other countries could provide to door service. For those we cannot go to factory at site, we will provide full details installation guidance and give remote support by internet (Wechat, whatsapp, zoom, telephone, email, teamviewer).
Company Profile

The company covers an area of more than 46000 square meters. , with built production workshop 33000 square meters.
Certifications

SUNRISE is focus on quality and has already passed ISO9001:2008 certification, CE certificate, also with more than ten own intellectual property rights and patent technology.
Quality Make Brand, Honesty Win Market!
Innovation Promote Development, Harmony Converage Talents.
Thanks For All Customers Believe And Choose Sunrise CNC.

---
