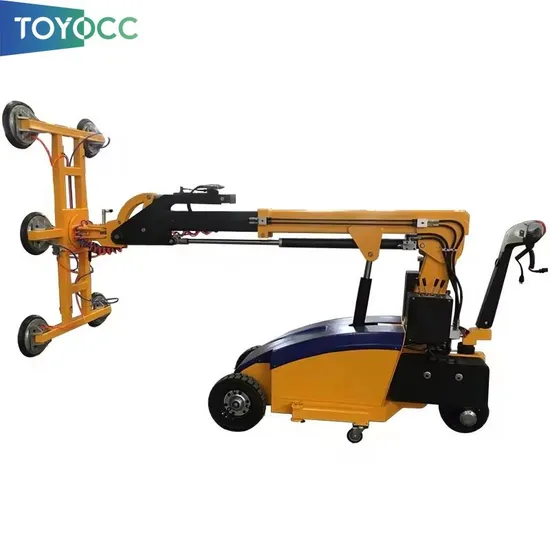

300kg-800kg Large Version Glass Installation Robot Glass Lifter

Product Description

Glass Handling Robot/ Glass Installation manipulator
Description:
1. Double system control, one vacuum system for working, and one for alternate;
2. Adopt American THOMAS vacuum pump, Italy METALROTA heavy type driving wheels, Swiss BUCHER power unit, and intelligent maintenance-free battery, during the use, without air source or power supply, it can achieve electric walking, lifting, lowering, taking, and releasing air by electrical. Manually rotated 360 degrees in the vertical type, and manually rotated 90 degrees in the horizontal type.
3. With Japan PANASONIC digital display vacuum pressure switch and battery fuel gauge, clearly monitor the safe operation of the equipment.
4. With a vacuum pressure auto supply system to ensure the whole vacuum system is maintained at a relatively constant safety pressure value, If there is an unexpected power failure, the pressure holding function can extend the emergency handling time, it is safer to use.
5. Adjustable design can be changed the position of the suction cups and be assembled in various ways according to needs, each suction cup equipped with a separate control valve can handle a glass of different shapes and sizes.
Detailed Pics:

Specification Table:

Glass Installation Robot	TAR-300		TAR-400	TAR-500	TAR-600	TAR-800
Rated Load Capacity	300KG		400KG	500KG	600KG	800KG
Battery	2*12/80V/A		2*12/100V/A	2*12/120V/A		2*12/210V/A
Charger	24/12V/A		24/15V/A	24/18V/A		AC110-220V
Overall Length	2660mm			2800mm		3045mm
Driving Wheel Dimension	250*80mm			300*100mm		450*200mm
Drive motor	24/1200V/W					AC 24V/2.2KW
Overall Width	810mm					850mm
Pads Diameter	300mm					400mm
Manual Rotating	360°
Lifting Height	3500mm/4200mm/4500mm
Lift motor	24/2000V/W
Glass Size	3660*2440mm
Manipulation	Walkle Type

Features:
